Air Bag System Components, Wiring and Connectors Location

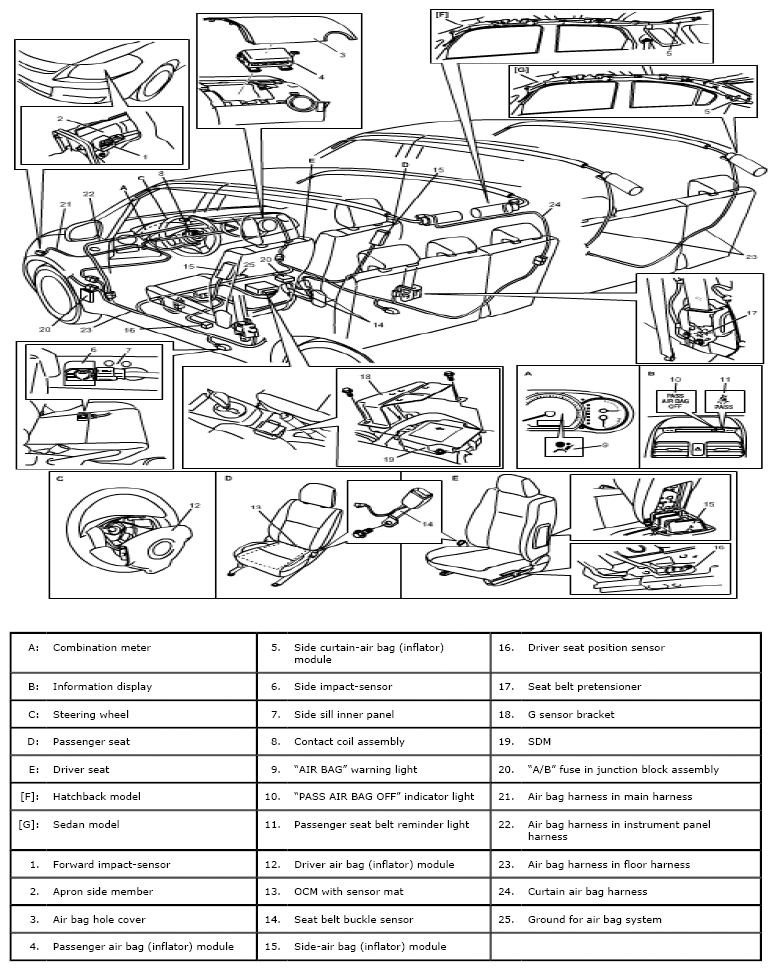

Fig 1: Identifying Air Bag System Components, Wiring And Connectors Location

G05472173

Courtesy of SUZUKI OF AMERICA CORP.
