Underdrive Clutch and One-Way No. 3 Clutch Components

WARNING: This page is about a different variant/trim than selected.

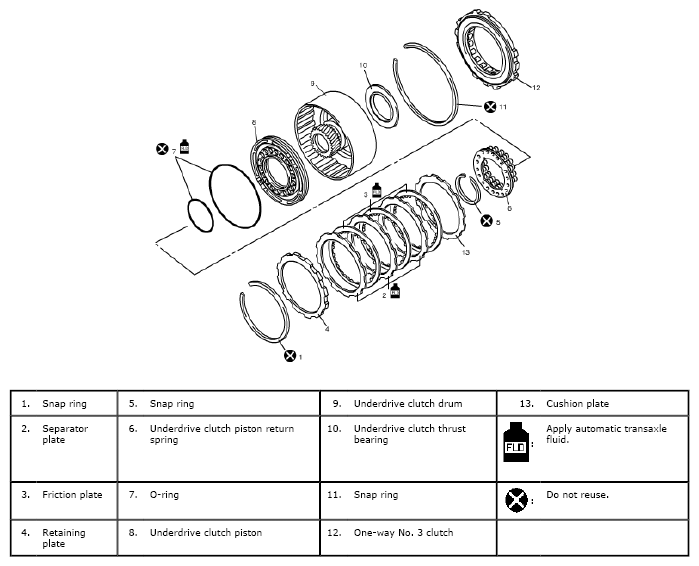

Fig 1: Exploded View Of Underdrive Clutch & One-Way No. 3 Clutch Components
G04847919Courtesy of SUZUKI OF AMERICA CORP.
