Oil Pump 2nd Coast Brake and 2nd Brake Components

WARNING: This page is about a different variant/trim than selected.

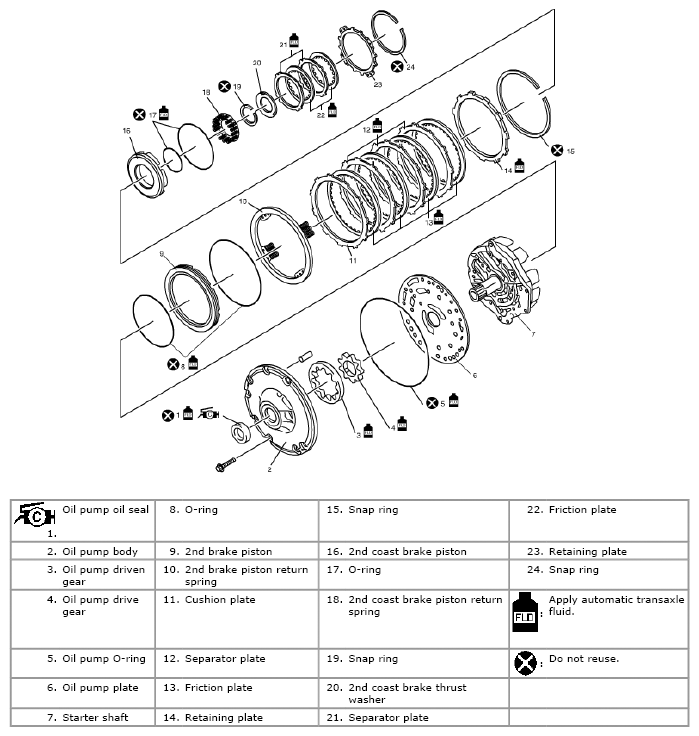

Fig 1: Exploded View Of Oil Pump 2nd Coast Brake & 2nd Brake Components
G04847850Courtesy of SUZUKI OF AMERICA CORP.
