1st/Reverse Brake and One-Way No. 2 Clutch Disassembly and Reassembly: Disassembly

WARNING: This page is about a different variant/trim than selected.

Remove one-way No. 2 clutch inner race (1).

Fig 1: Identifying One-Way No. 2 Clutch Inner Race
Courtesy of SUZUKI OF AMERICA CORP.
Remove snap ring (1), using flat end rod or the like.

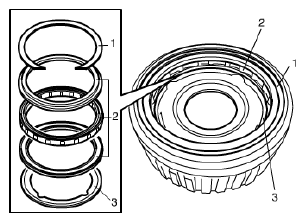

Remove one-way No. 2 clutch (2) and front planetary ring gear thrust washer (3).

Fig 2: Identifying One-Way No. 2 Clutch & Front Planetary Ring Gear Thrust Washer
Courtesy of SUZUKI OF AMERICA CORP.
Remove snap ring (1), using pliers or the like.
Remove front planetary ring gear flange (2) from front planetary ring gear (3).

Fig 3: Identifying Pliers On Snap Ring
Courtesy of SUZUKI OF AMERICA CORP.
Remove O-rings (1) from 1st/reverse brake piston (2).

Fig 4: Identifying O-Rings From 1st/Reverse Brake Piston
Courtesy of SUZUKI OF AMERICA CORP.
