1st/Reverse Brake and One-Way No. 2 Clutch Components

WARNING: This page is about a different variant/trim than selected.

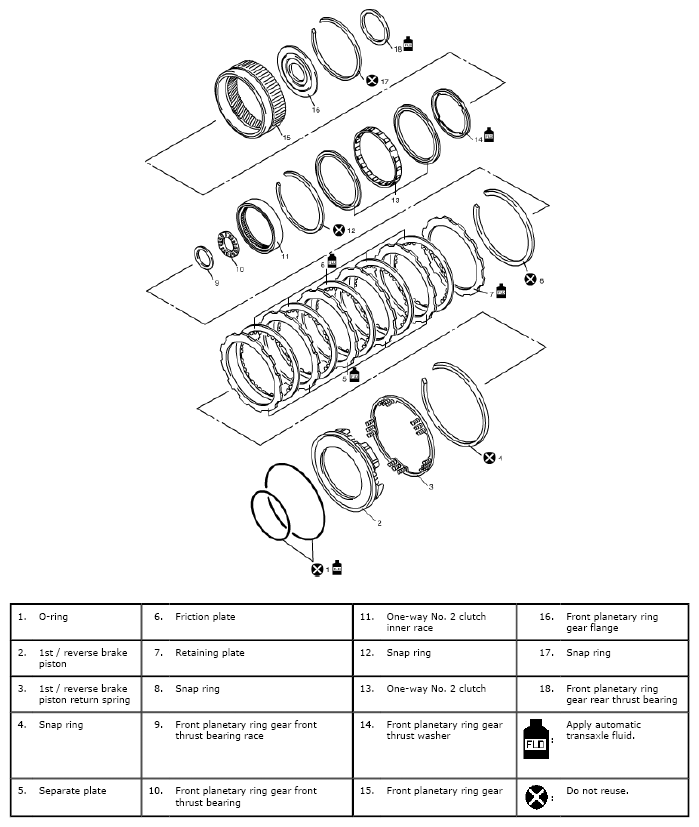

Fig 1: Exploded View Of Reverse Brake & One-Way No. 2 Clutch Components
G04847905Courtesy of SUZUKI OF AMERICA CORP.
