DTC P0705: Transmission Range Sensor Circuit Malfunction (P R N D L Input): Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

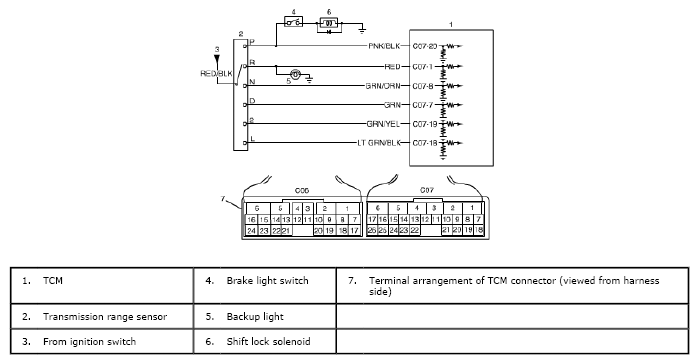

Fig 1: Identifying Transmission Range Sensor Circuit Wiring Diagram

Courtesy of SUZUKI OF AMERICA CORP.
