Front Drive Shaft Assembly Components Location

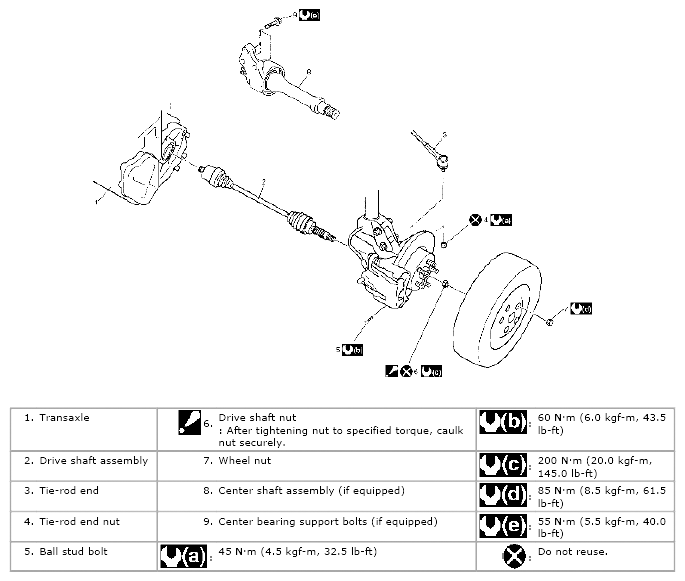

Fig 1: Front Drive Shaft Assembly Replacement Components & Torque Specification

G04847271

Courtesy of SUZUKI OF AMERICA CORP.
