Ignition Switch Inspection

Reference: IGNITION SWITCH REMOVAL AND INSTALLATION

• Check for continuity between terminals at each switch position. If check result is not as specified, replace switch.

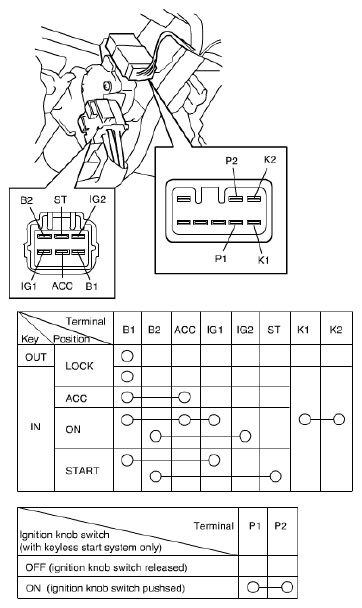

  Fig 1: Inspecting Ignition Switch

  Courtesy of SUZUKI OF AMERICA CORP.
