Front Brake Hose And Pipe Components

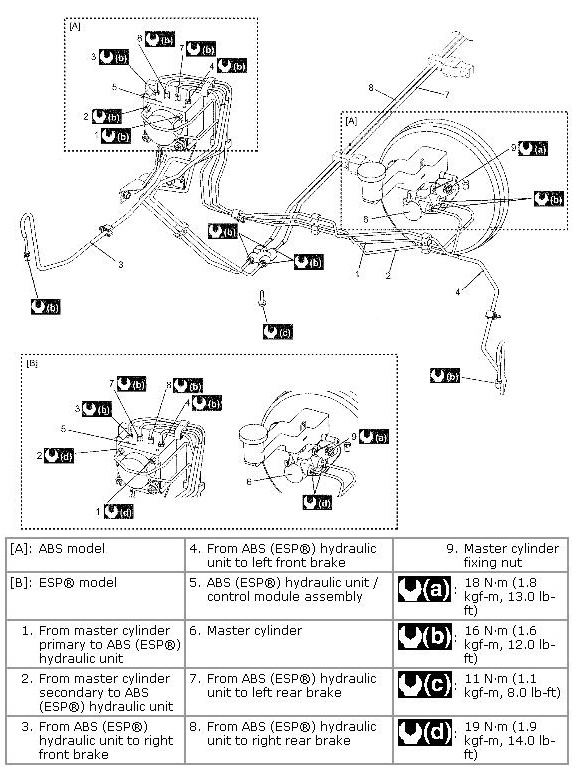

Fig 1: Front Brake Hose And Pipe Components

G00425774

Courtesy of SUZUKI OF AMERICA CORP.
