Wheel Cylinder Removal and Installation: Removal

  1. Remove brake drum referring to Rear Brake Drum Removal and Installation .
  2. Remove brake shoe referring to Rear Brake Shoe Removal and Installation .
  3. Loosen brake pipe flare nut (1) but only within the extent that fluid does not leak.
  4. Remove wheel cylinder mounting bolt (3). Disconnect brake pipe from wheel cylinder and put bleeder plug cap (2) onto pipe to prevent fluid from spilling.

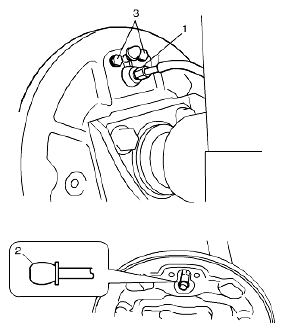

    Fig 1: Identifying Brake Pipe Flare Nut And Wheel Cylinder Mounting Bolt
    G04847584Courtesy of SUZUKI OF AMERICA CORP.
