Home >> Suzuki >> 2008 >> SX4 Crossover, FWD, Automatic >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> Brakes - Rear >> Drum >> Repair Instructions >> Rear Drum Brake Components

Rear Drum Brake Components

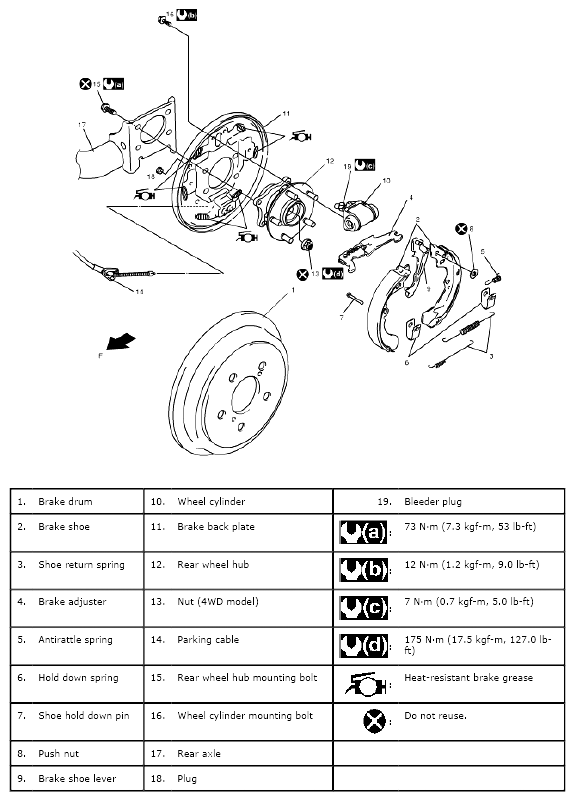

Fig 1: Rear Drum Brake Replacement Components With Torque Specifications

G04847572

Courtesy of SUZUKI OF AMERICA CORP.
