Rear Brake Shoe Inspection

Reference: Rear Brake Shoe Removal and Installation

Reference: Rear Brake Drum and Shoe Inspection

• Check ratchet of brake adjuster (1) assembly for wear or damage.
• Check shoe return spring, antirattle spring, quadrant spring and shoe hold down spring for damage, corrosion and weakening.
• Check for smooth movement of brake shoe lever (2) along shoe rim.

If any defective or malfunction is found, repair or replace.

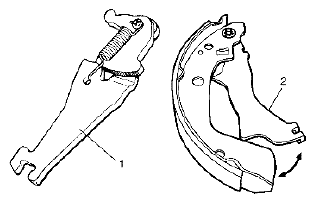

Fig 1: Identifying Brake Adjuster And Brake Shoe Lever

Courtesy of SUZUKI OF AMERICA CORP.
