Rear Brake Drum Removal and Installation: Installation

Reference: Rear Brake Drum and Shoe Inspection

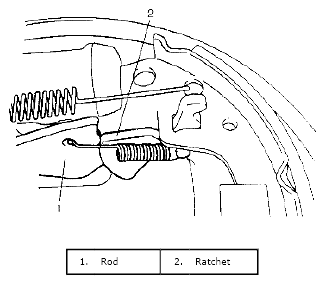

1. Before installing brake drum, to maximize brake shoe-to-drum clearance, put screwdriver between rod (1) and ratchet (2) and push down ratchet as shown in figure.
   Fig 1: Putting Screwdriver Between Rod And Ratchet

   Courtesy of SUZUKI OF AMERICA CORP.
   NOTE: The figure show ratchet position where brake shoe-to-drum clearance is maximum.
   Fig 2: Identifying Rod And Ratchet

   Courtesy of SUZUKI OF AMERICA CORP.
2. Confirm that inside of brake drum and brake shoes are free from dirt and oil. And then install brake drum.
3. Adjust parking brake cable referring to

   Adjust parking brake cable referring to PARKING BRAKE INSPECTION AND ADJUSTMENT .

4. Install rear wheel referring to WHEEL (WITH TIRE) REMOVAL AND INSTALLATION .
6. Check to ensure that brake drum is free from dragging and proper braking is obtained. Perform PARKING BRAKE .
