Rear Disc Brake Components

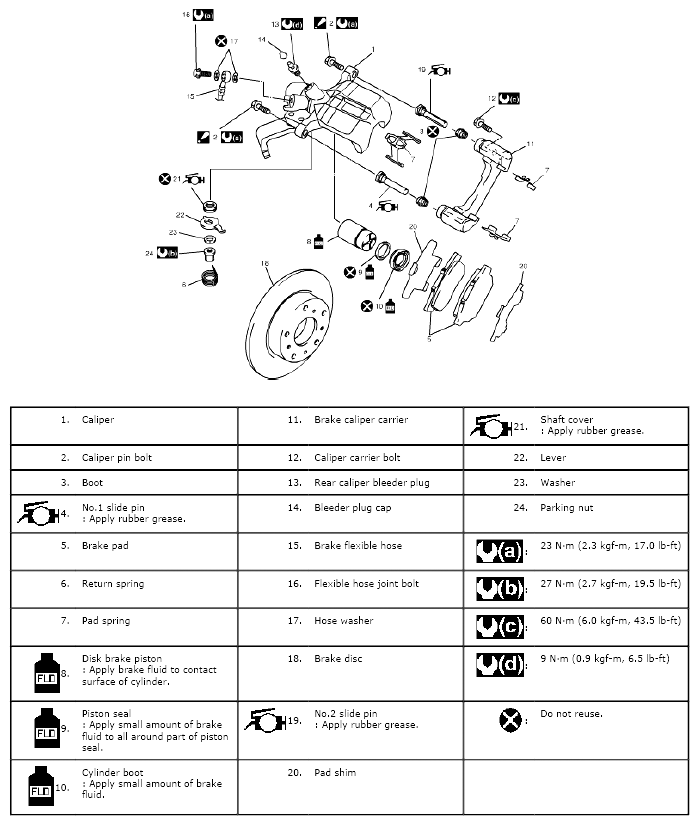

Fig 1: Rear Disc Brake Replacement Components With Torque Specifications

G04847588

Courtesy of SUZUKI OF AMERICA CORP.
