Cylinder Boot

Check boots (1) for breakage, crack and damage.

If defective, replace.

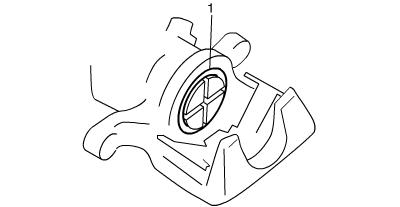

Fig 1: Checking Boots For Breakage, Cracks And Damage
G00425780Courtesy of SUZUKI OF AMERICA CORP.
