Master Cylinder Removal and Installation: Removal

CAUTION:

Never disassemble master cylinder since the master cylinder is supplied as assembly parts. If faulty condition is found, replace it with new one.
Do not allow brake fluid to get on painted surfaces. Painted surfaces will be damaged by brake fluid, flush it with water immediately if any fluid is spilled.

Clean outside of master cylinder.
Disconnect fluid level switch coupler (1) and clamp (3) from reservoir (2).

Fig 1: Identifying Fluid Level Switch Coupler, Clamp And Reservoir
Courtesy of SUZUKI OF AMERICA CORP.
Drain brake fluid in reservoir.
Disconnect clutch reservoir hose from reservoir (M/T model).
Disconnect brake pipes (1) connected to master cylinder.
Remove master cylinder fixing nuts (2).
Remove master cylinder (3) and O-ring.

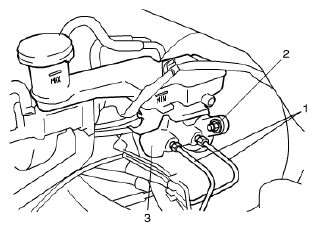

Fig 2: Identifying Brake Pipes And Master Cylinder Fixing Nuts
Courtesy of SUZUKI OF AMERICA CORP.
