Clutch Pedal Removal and Installation: Removal

WARNING: This page is about a different car, the 2007 Suzuki Reno, 2007 Suzuki Forenza, 2006 Suzuki Reno, and 2006 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Disconnect the return spring from the clutch pedal.
Remove the clip and the pedal mounting shaft.

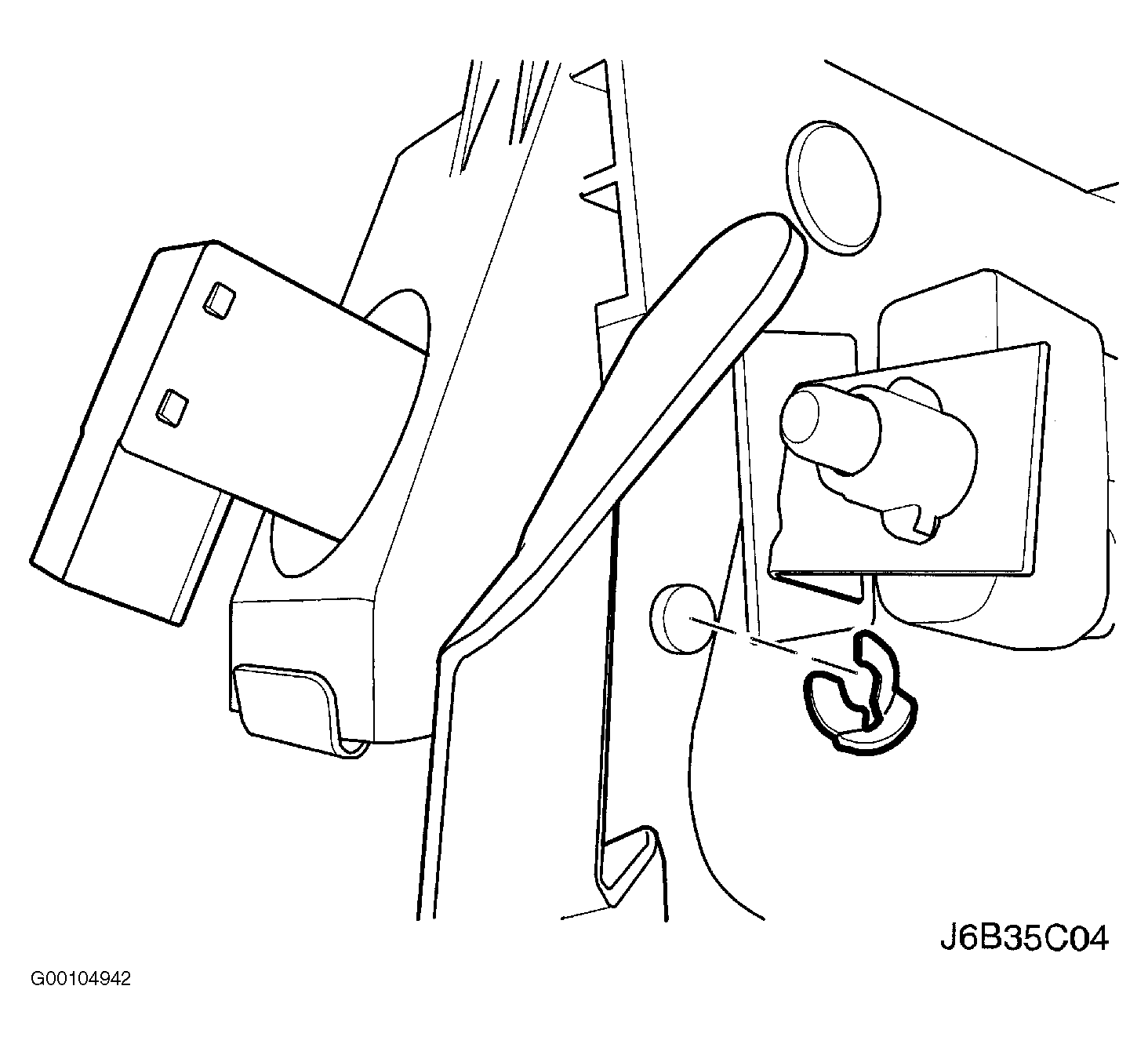

Fig 1: Identifying Clip And Pedal Mounting Shaft (2006)
Courtesy of SUZUKI OF AMERICA CORP.

Fig 2: Identifying Clip And Pedal Mounting Shaft (2007)
Courtesy of SUZUKI OF AMERICA CORP.
Remove the locking clip and push rod fixing pin.
Remove the push rod from the clutch pedal.
Remove the clutch pedal.

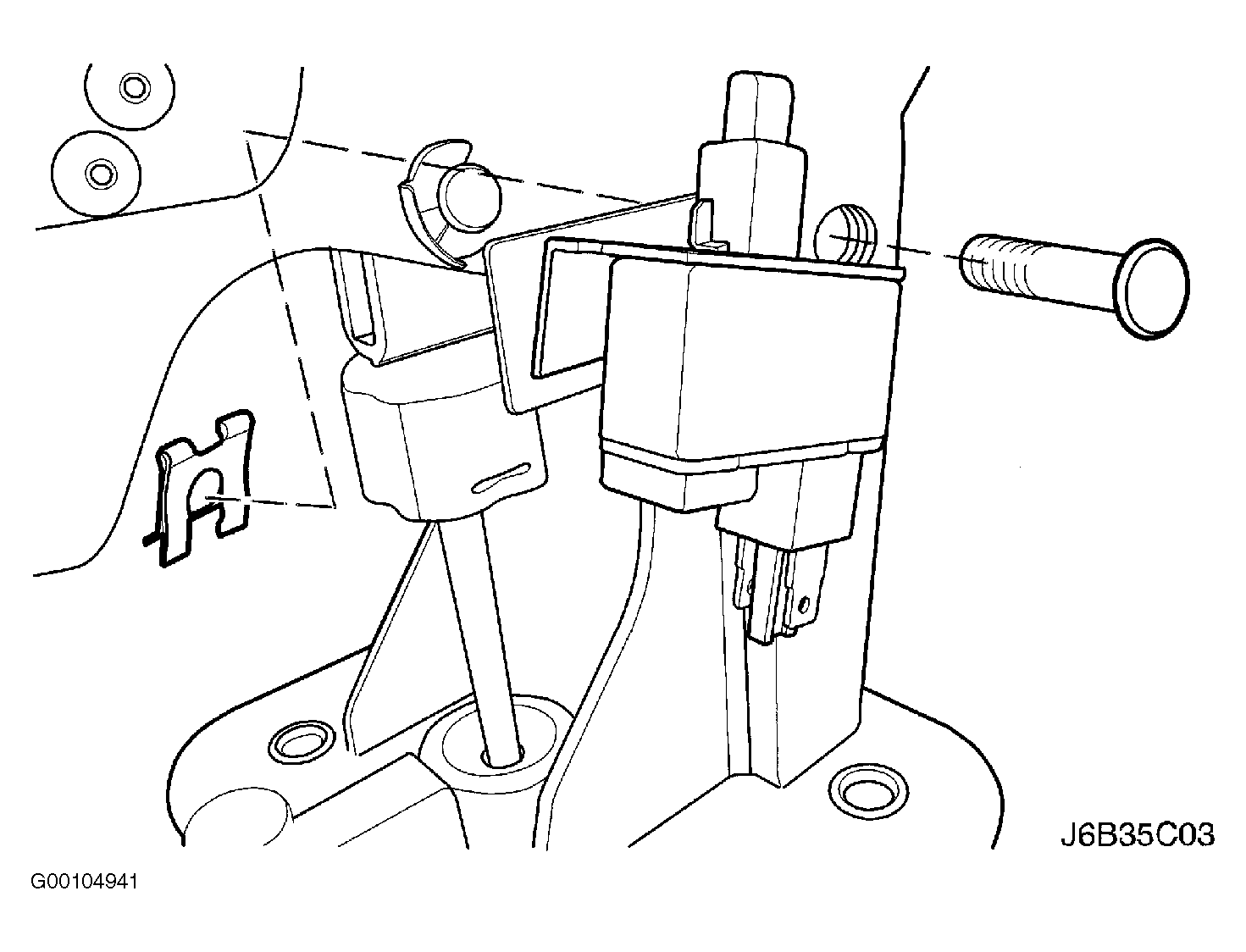

Fig 3: Identifying Locking Clip And Push Rod Fixing Pin (2006)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 4: Identifying Locking Clip And Push Rod Fixing Pin (2007)

Courtesy of SUZUKI OF AMERICA CORP.
