Drive Axle Seal Removal and Installation: Removal
WARNING: This page is about a different car, the 2007 Suzuki Reno, 2007 Suzuki Forenza, 2006 Suzuki Reno, and 2006 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Do not damage the bearing adjusting ring with the pry bar.
- Remove the drive axle from the transaxle. Refer to DRIVE AXLE ASSEMBLY REMOVAL AND INSTALLATION .

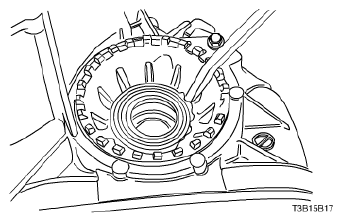

- Remove the drive axle seal by lifting the outer lip of the seal with a pry bar.
