Drive Axle Seal Removal and Installation: Installation
WARNING: This page is about a different car, the 2007 Suzuki Reno, 2007 Suzuki Forenza, 2006 Suzuki Reno, and 2006 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

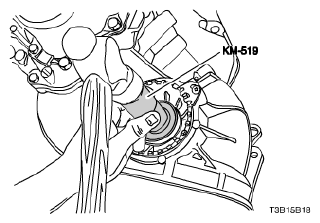

- Install the new drive axle seal using the ring installer KM-519 and a hammer.
- Coat the seal lip with the transaxle fluid.
- Install the drive axle. Refer to DRIVE AXLE ASSEMBLY REMOVAL AND INSTALLATION .
