DTC P0016: Crankshaft Position (CKP) - Camshaft Position (CMP) Correlation: Notes

WARNING: This page is about a different car, the 2006 Suzuki Reno and 2006 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

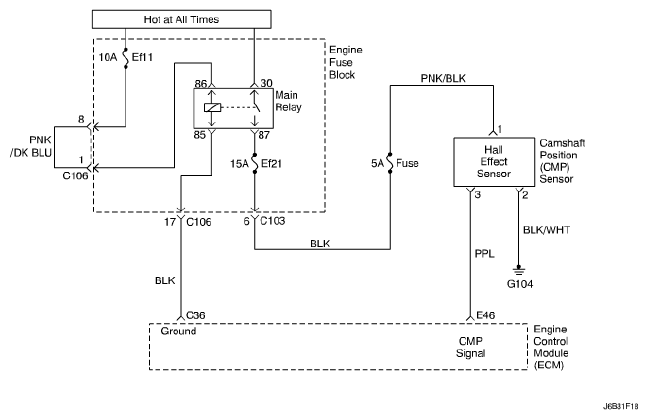

Fig 1: DTC P0016: Crankshaft Position (CKP) - Camshaft Position (CMP) Correlation - Circuit Diagram
G04716232Courtesy of SUZUKI OF AMERICA CORP.
