Brake Hose (Rear) Removal and Installation: Removal

Raise and suitably support the vehicle.
Remove the brake hose retainer.
Disconnect the brake pipe line from the disc brake hose.

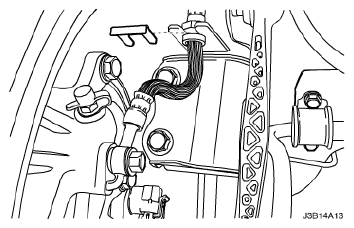

Fig 1: Disconnecting Brake Pipe Line From Disc Brake Hose
Courtesy of SUZUKI OF AMERICA CORP.
Remove the rear disc brake hose retainer and the brake hose from the bracket on the steering knuckle shaft.

Fig 2: Placement Of Rear Disc Brake Hose Retainer And Brake Hose On Bracket At Steering Knuckle Shaft
Courtesy of SUZUKI OF AMERICA CORP.
Remove the rear disc brake hose from the caliper.

Fig 3: Identifying Rear Disc Brake Hose On Caliper
Courtesy of SUZUKI OF AMERICA CORP.
