Instrument Cluster Schematics

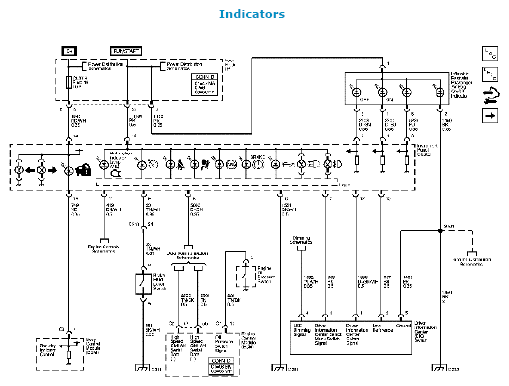

Fig 1: Identifying Instrument Cluster Indicators Schematics Circuit Diagram (1 Of 2)
G04845140Courtesy of SUZUKI OF AMERICA CORP.

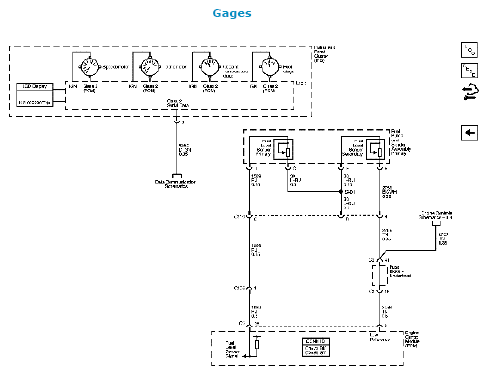

Fig 2: Identifying Instrument Cluster Indicators Schematics Circuit Diagram (2 Of 2)
G04845141Courtesy of SUZUKI OF AMERICA CORP.
