Instrument Panel Outer Trim Cover Replacement

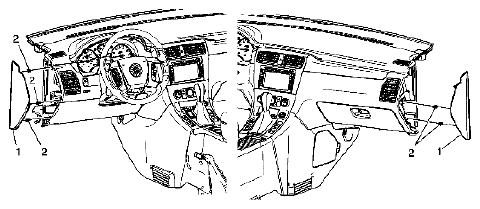

Fig 1: Identifying Instrument Panel Outer Trim Cover & Retainer Clips
G04845165Courtesy of SUZUKI OF AMERICA CORP.
INSTRUMENT PANEL REFERENCE TABLE

Callout Component Name
1 Instrument Panel Outer Trim Cover Right or Left
2 Retainer Clips (Qty 5) (3 Left Side) (2 Right Side)
