Instrument Panel Insulator Panel Replacement - Left Side

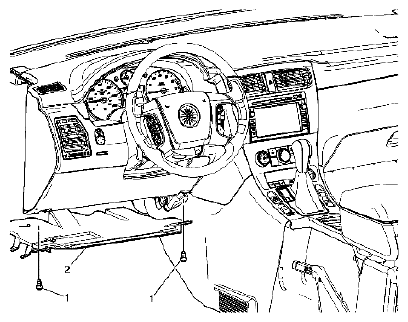

Fig 1: Identifying Instrument Panel Closeout/Insulator Panel Assembly & Screws (Left Side)
G04845160Courtesy of SUZUKI OF AMERICA CORP.
INSTRUMENT PANEL INSULATOR REFERENCE TABLE

Callout Component Name
1 Instrument Panel Closeout/Insulator Panel Screws (Qty 2)
CAUTION: Refer to FASTENER NOTICE .

Tightening torque
2 N.m (18 lb in)
2 Instrument Panel Closeout/Insulator Panel Assembly.
