Instrument Panel Compartment Door Latch Replacement

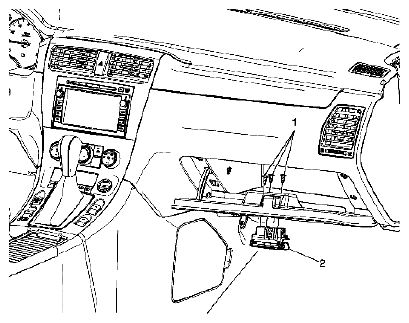

Fig 1: Identifying Instrument Panel Compartment Door Latch Assembly & Screws
G04845171Courtesy of SUZUKI OF AMERICA CORP.
INSTRUMENT PANEL COMPARTMENT DOOR LATCH REFERENCE TABLE

Callout Component Name
1 Instrument Panel Compartment Latch Screws (Qty 3)
CAUTION: Refer to FASTENER NOTICE .

Tightening torque
2 N.m (18 lb in)
2 Instrument Panel Compartment Latch Assembly
