Ambient Air Temperature Sensor Replacement

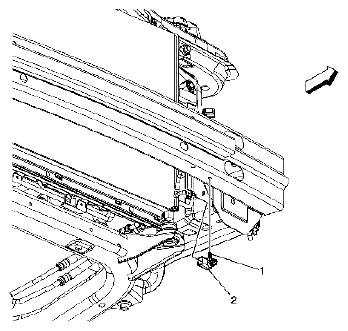

Fig 1: Identifying Ambient Air Temperature Sensor & Retainer
G04845176Courtesy of SUZUKI OF AMERICA CORP.
TEMPERATURE SENSOR REFERENCE TABLE

Callout Component Name
1 Ambient Air Temperature Sensor Retainer
2 Ambient Air Temperature Sensor
Tip:  Disconnect the electrical connector.
