Rotor Removal and Installation: Installation
CAUTION:
To guarantee uniform braking, always refinish both rotors even if only one rotor is defective.

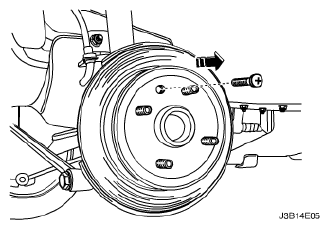

- Install the rotor on the front wheel hub and install the detent screw.
Tighten:
Tighten the rotor detent screw to 4 N.m (35 lb-in). See Figure.
- Apply a few drops of thread-locking compound to the caliper bracket mounting bolts and install the caliper bracket.
Tighten:
Tighten the caliper bracket mounting bolts to 56 N.m (41 lb-ft).
- Install the brake shoes and the caliper. See Caliper Removal and Installation .
