Hub and Parking Brake Shoe / Backplate Removal and Installation: Removal

Remove the caliper mounting bracket.

Fig 1: Identifying Caliper Mounting Bracket Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Remove the rotor detent screw.
Remove the rotor.

Fig 2: Identifying Rotor Detent Screw
Courtesy of SUZUKI OF AMERICA CORP.
Remove the rear wheel speed sensor connector.

Fig 3: Identifying Rear Wheel Speed Sensor Connector
Courtesy of SUZUKI OF AMERICA CORP.
Remove the upper return spring, lower return spring and adjuster assembly.

Fig 4: Identifying Upper Return Spring, Lower Return Spring And Adjuster Assembly
Courtesy of SUZUKI OF AMERICA CORP.
Remove the retaining spring plate, spring and retaining spring pin.
Remove the parking brake shoe.

Fig 5: Identifying Retaining Spring Plate, Spring And Retaining Spring Pin
Courtesy of SUZUKI OF AMERICA CORP.
Remove the parking brake cable pin and cable from the back plate.

Fig 6: Identifying Parking Brake Cable Pin And Cable
Courtesy of SUZUKI OF AMERICA CORP.
Remove the hub bolts and hub.

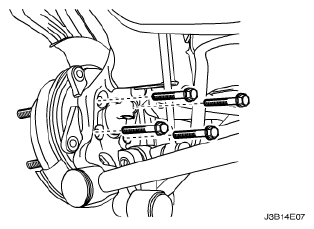

Fig 7: Identifying Hub Bolts
Courtesy of SUZUKI OF AMERICA CORP.
