Hub and Parking Brake Shoe / Backplate Removal and Installation: Installation

Install the parking brake cable to the back plate and lock the pin.

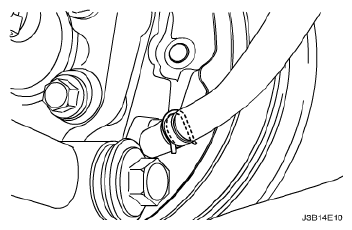

Fig 1: Identifying Parking Brake Cable Pin And Cable
Courtesy of SUZUKI OF AMERICA CORP.
Install the hub with bolts.
Tighten:

Tighten the hub bolts to 65 N.m (48 lb-ft).
Install the retaining spring pin, parking brake shoe, retaining spring and retaining spring plate.

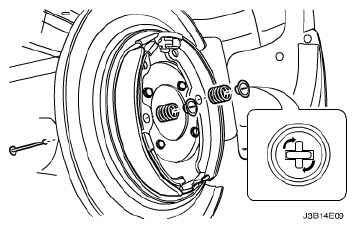

Fig 2: Identifying Retaining Spring Pin, Parking Brake Shoe, Retaining Spring And Retaining Spring Plate
Courtesy of SUZUKI OF AMERICA CORP.
Install the adjuster assembly, lower return spring and upper return spring.

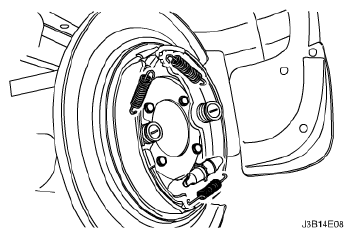

Fig 3: Identifying Adjuster Assembly, Lower Return Spring And Upper Return Spring
Courtesy of SUZUKI OF AMERICA CORP.
Connect the wheel speed sensor connector.

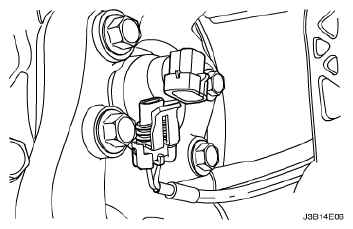

Fig 4: Identifying Wheel Speed Sensor Connector
Courtesy of SUZUKI OF AMERICA CORP.
Install the rotor with detent screw.
Tighten:

Tighten the rotor detent screw to 4 N.m (35 lb-in).

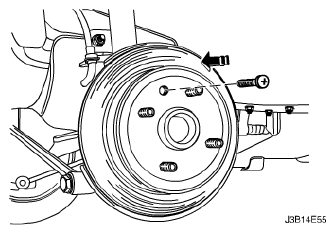

Fig 5: Identifying Rotor Detent Screw
Courtesy of SUZUKI OF AMERICA CORP.
Install the caliper mounting bracket with bolts.
Tighten:

Tighten the caliper bracket mounting bolts to 56 N.m (41 lb-ft).
Install the wheel.

Fig 6: Identifying Caliper Mounting Bracket Bolts
Courtesy of SUZUKI OF AMERICA CORP.
