Stoplamp Switch Removal and Installation: Installation

  1. Place the stoplamp switch into the plug connector.
  2. Twist the stoplamp switch into the brake pedal bracket hole.
  3. Depress the brake pedal and pull the switch plunger to its maximum setting to adjust the switch.
  4. Release the plunger and pull up on the pedal.
  5. Connect the negative battery cable.

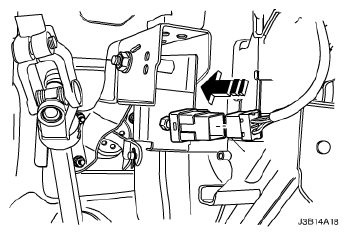

    Fig 1: Connecting Stoplamp Switch To Plug Connector
    G04716985Courtesy of SUZUKI OF AMERICA CORP.
