Pressure Bleeding the Brakes

CAUTION: Pressure bleeding equipment must be of the diaphragm type. It must have a rubber diaphragm between the air supply and the brake fluid to prevent air, moisture, oil and other contaminants from entering the hydraulic system. Contamination could lead to deterioration of the braking components and loss of braking action.
  1. Disconnect the master cylinder electrical connector.
  2. Remove the master cylinder reservoir cap.
    Fig 1: Master Cylinder Electrical Connector & Reservoir Cap
    G04716973Courtesy of SUZUKI OF AMERICA CORP.
  3. Connect the bleeder with the adapter to the master cylinder reservoir.
  4. For vehicles with the antilock braking system (ABS), locate and remove the hydraulic modulator bleeder valves. Refer to BLEEDING SYSTEM.
  5. Charge the bleeder ball to 140 - 172 kPa (20 - 25 psi).
  6. Connect the line to the adapter. Open the line valve.
  7. Raise and suitably support the vehicle.
  8. Attach the bleeder hose to the bleeder valve. Submerge the opposite end of the hose in a clean container partially filled with brake fluid.
  9. Open the bleeder valve one-half to three-fourths turn and allow the fluid to flow until no air is seen in the fluid.

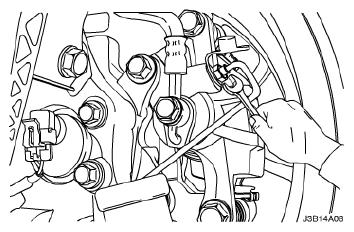

    Fig 2: Opening Brake Bleeder Valve One-Half To Three-Fourths Turn
    G04716970Courtesy of SUZUKI OF AMERICA CORP.

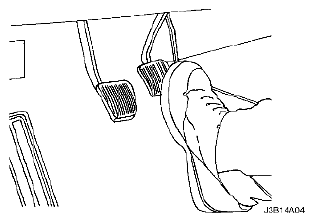

  10. Inspect the brake pedal for sponginess. Repeat the entire bleeding procedure to correct this condition.

    See Figure.
