Brake Pedal Removal and Installation: Installation

  1. Install the brace with nuts.

    Tighten:

    Tighten the brace with nuts to 22 N.m (16 lb-ft).

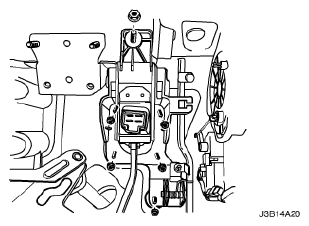

  2. Install the brake pedal.

    See Figure.

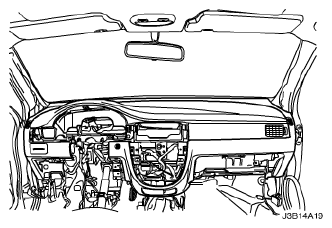

  3. Install the instrument panel. Refer to .

    See Figure.
