Brake Hose (Rear) Removal and Installation: Installation

Connect the brake pipe line to the brake hose.
Tighten:

Tighten the brake line to 16 N.m (12 lb-ft).
Install the retainer onto the rear brake hose bracket from the wheel house.

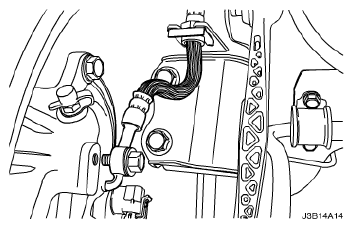

Fig 1: Installing Retainer Onto Rear Brake Hose Bracket From Wheel House
Courtesy of SUZUKI OF AMERICA CORP.
Install the rear disc brake hose to the caliper.
Tighten:

Tighten the rear disc brake hose-to-caliper bolt to 32 N.m (24 lb-ft).
Install the rear disc brake hose and retainer on the bracket on the steering knuckle shaft.
Lower the vehicle.
Bleed the brake system. Refer to Manual Bleeding the Brakes .
Check the brake system for leaks.

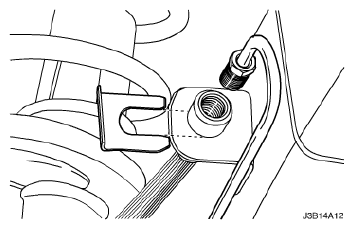

Fig 2: Removing/Installing Rear Disc Brake Hose And Retainer On Bracket On Steering Knuckle Shaft
Courtesy of SUZUKI OF AMERICA CORP.
