Brake Fluid Reservoir Removal and Installation: Installation

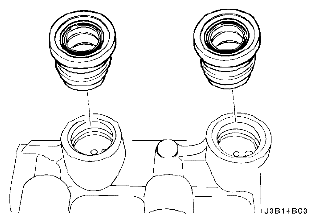

- Lubricate the new seals with clean brake fluid. Install the seals into the cylinder body.
- Install the reservoir on the master cylinder body.
See Figure.
- For vehicles with the manual transaxle, connect the clip to the clutch hose connection to the master cylinder.
- Add brake fluid.
- Raise and suitably support the vehicle.
- Bleed the braking system. Refer to Manual Bleeding the Brakes or BLEEDING SYSTEM. Bleed the clutch master cylinder. Refer to AIR BLEEDING .
- Lower the vehicle.

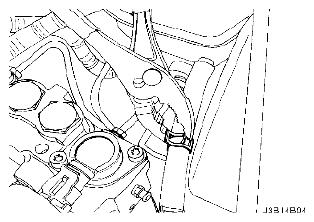

- Connect the reservoir electrical connector.
See Figure.
