Stoplamp Warning Circuit Diagnosis: Notes

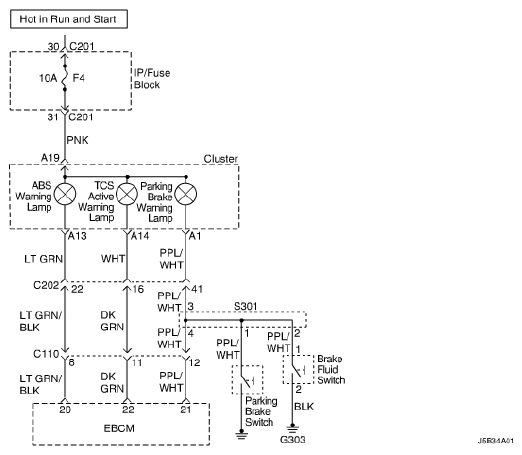

Fig 1: Stoplamp Warning Circuit Diagnosis Chart With TCS Lamp (2006)

Courtesy of SUZUKI OF AMERICA CORP.

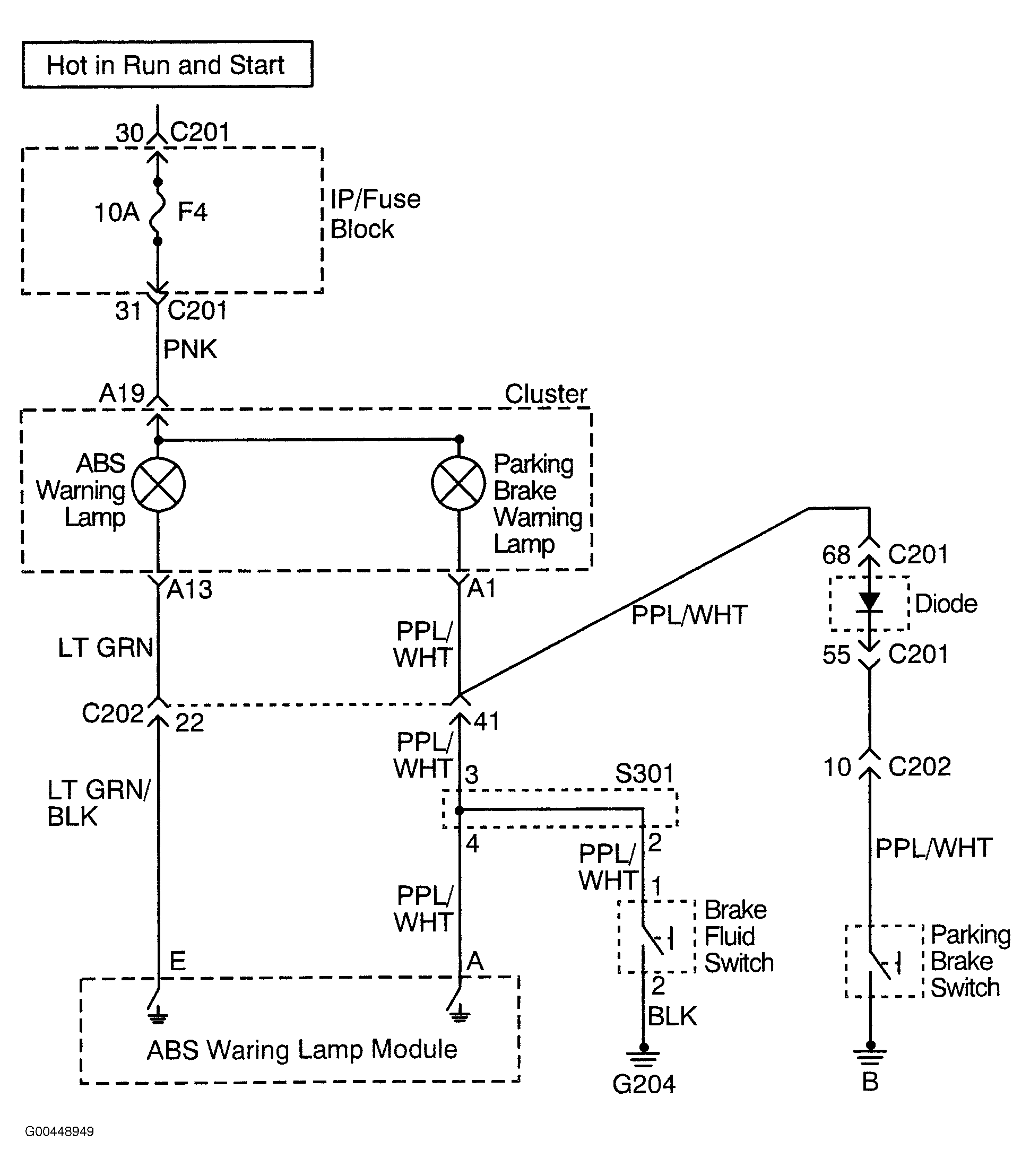

Fig 2: Stoplamp Warning Circuit Diagnosis Chart (2007)

Courtesy of SUZUKI OF AMERICA CORP.
