Brake System Location: Non-ABS

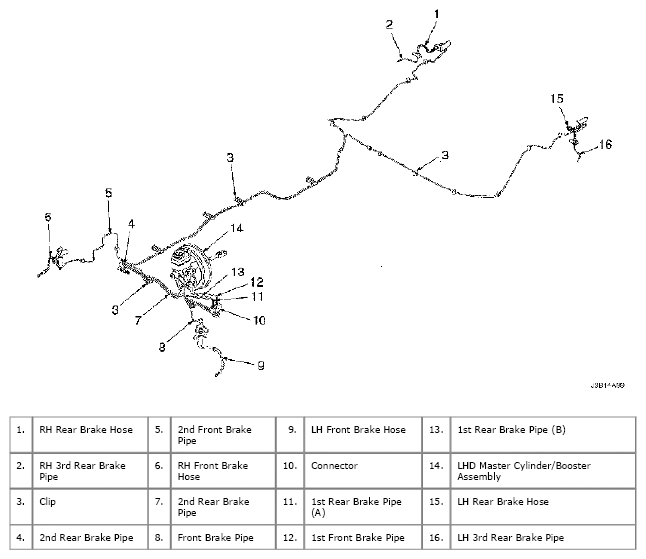

Fig 1: Brake System Component Location (Non-ABS)
G04716962Courtesy of SUZUKI OF AMERICA CORP.
