Instrument Cluster Circuit Wiring Diagram

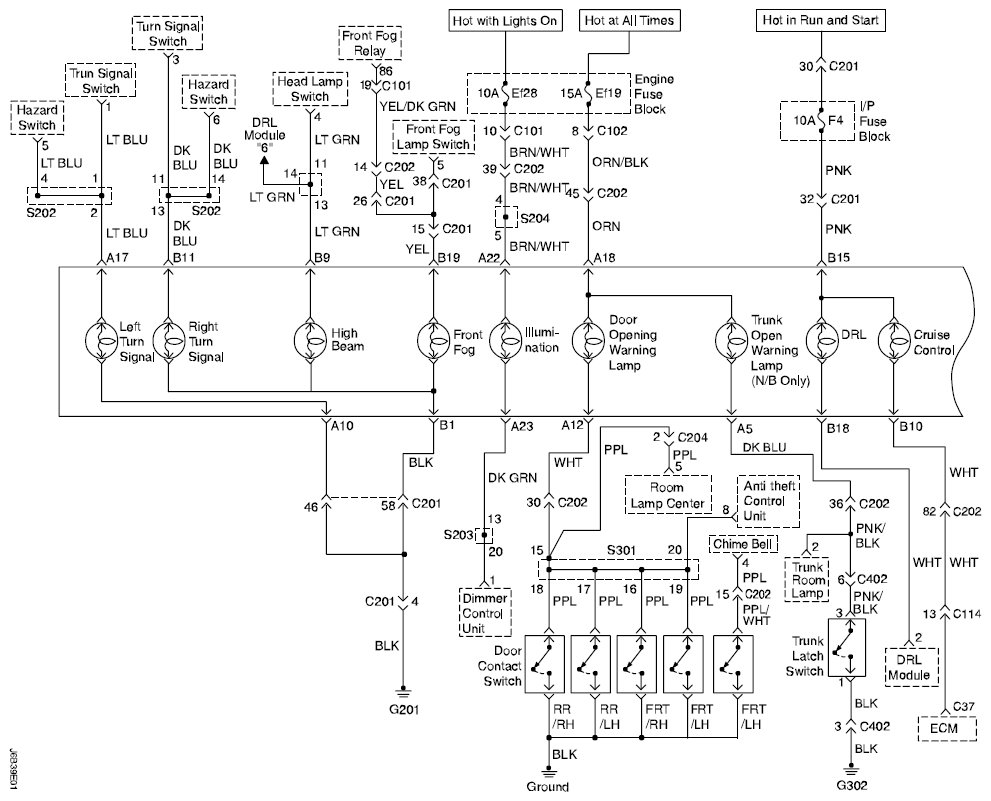

Fig 1: Instrument Cluster Circuit Wiring Diagram (1 Of 2)
G04718105Courtesy of SUZUKI OF AMERICA CORP.

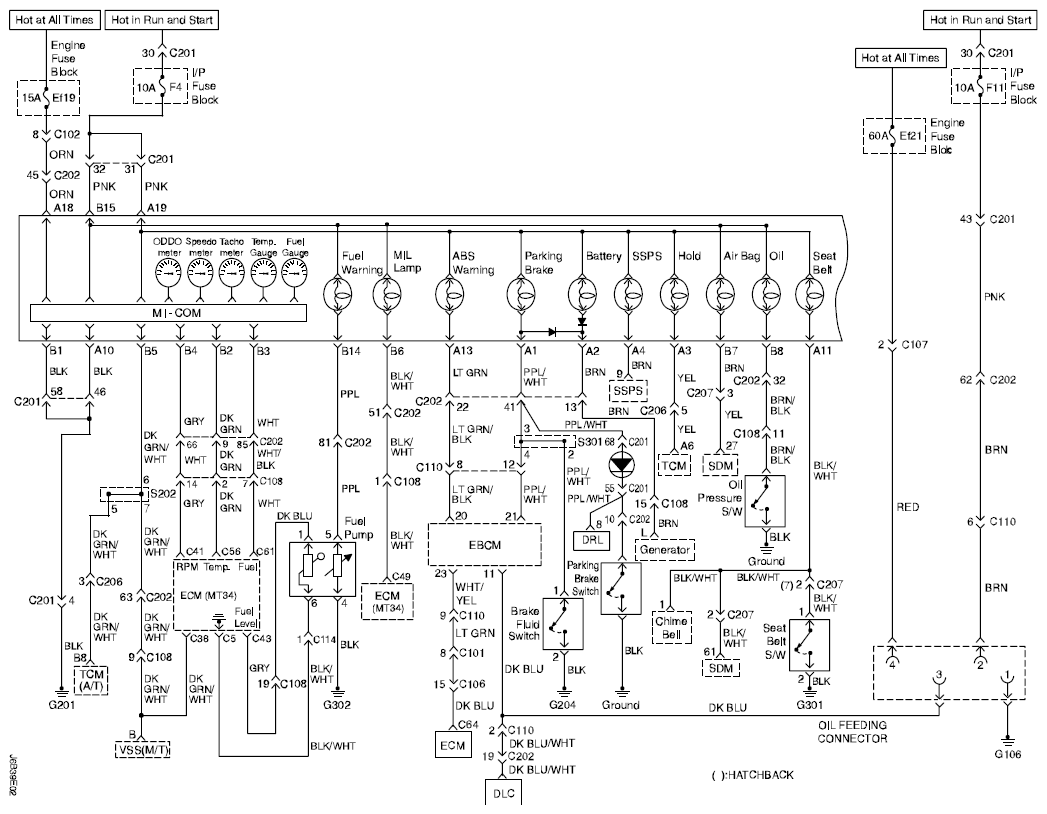

Fig 2: Instrument Cluster Circuit Wiring Diagram (2 Of 2)
G04718106Courtesy of SUZUKI OF AMERICA CORP.
