Instrument Cluster Trim Panel Removal and Installation: Installation

  1. Connect the electrical connectors.
  2. Install the instrument cluster trim panel with the screws.

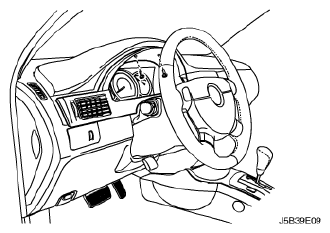

    Fig 1: Identifying Instrument Cluster Trim Panel
    G04718115Courtesy of SUZUKI OF AMERICA CORP.
