Solenoid Valves (Shift Solenoid Valves, TCC Solenoid Valve and Pressure Control Solenoid Valve) Removal and Installation: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect negative cable at battery.
Drain A/T fluid referring to A/T FLUID CHANGE .

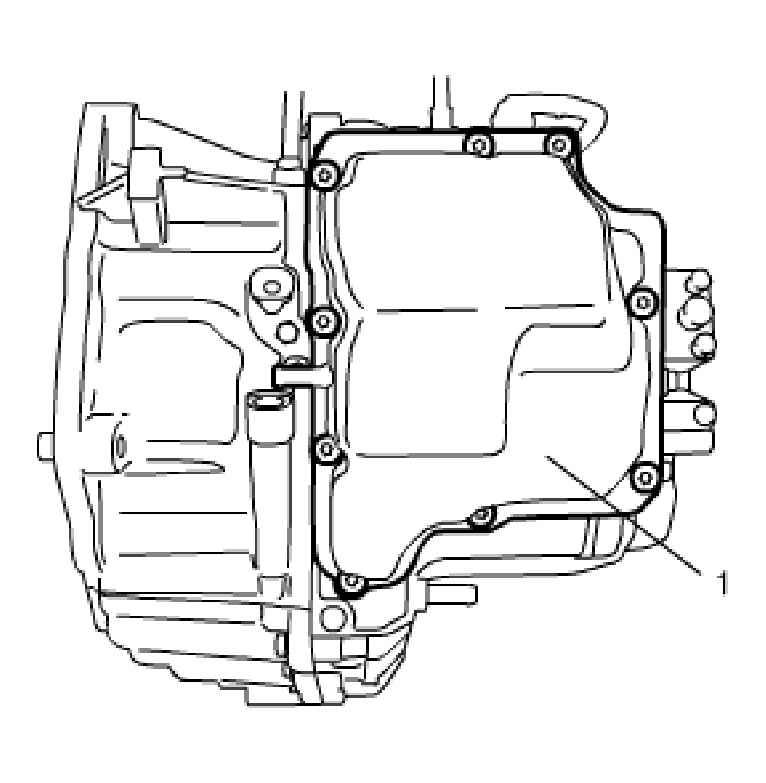

Remove transaxle side cover (1).

Fig 1: Removing Transaxle Side Cover
Courtesy of SUZUKI OF AMERICA CORP.
Remove solenoid harness from clamp.

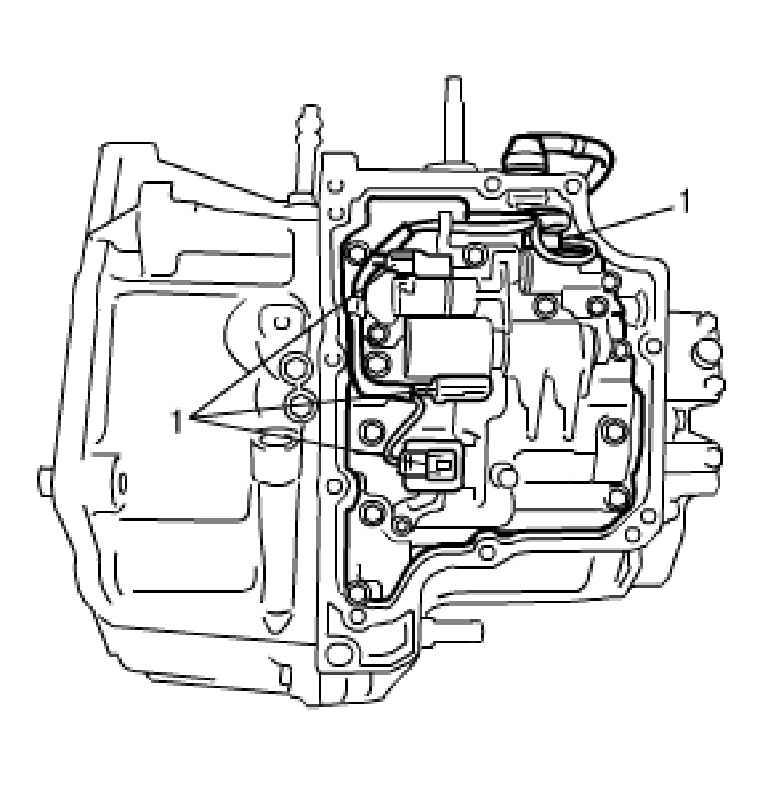

Disconnect solenoid connectors (1).

Fig 2: Disconnecting Solenoid Connectors
Courtesy of SUZUKI OF AMERICA CORP.

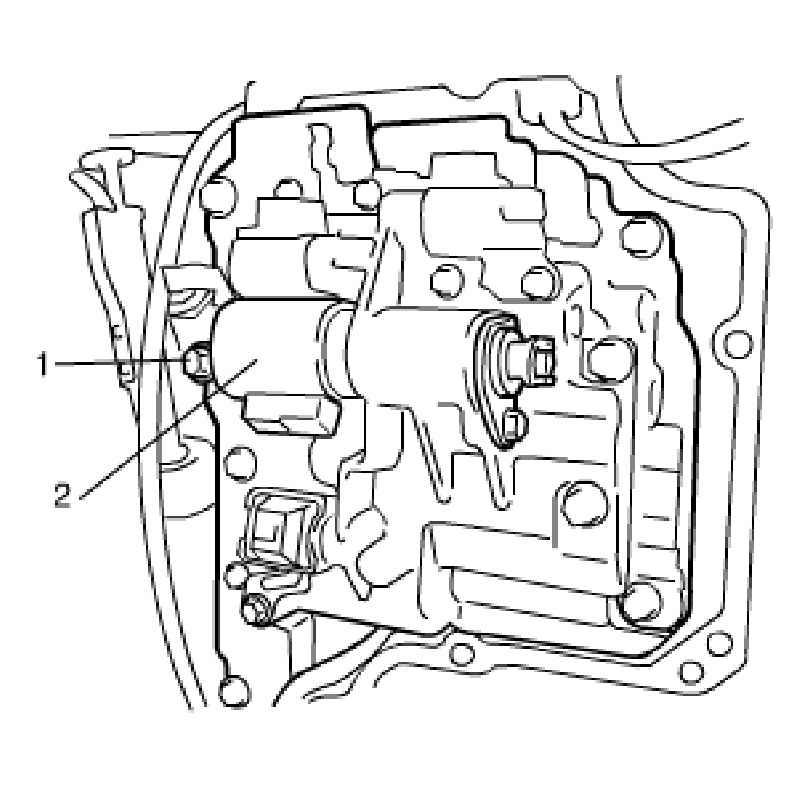

Remove pressure control solenoid valve (2) after removing bolt (1).

Fig 3: Removing Pressure Control Solenoid Valve
Courtesy of SUZUKI OF AMERICA CORP.

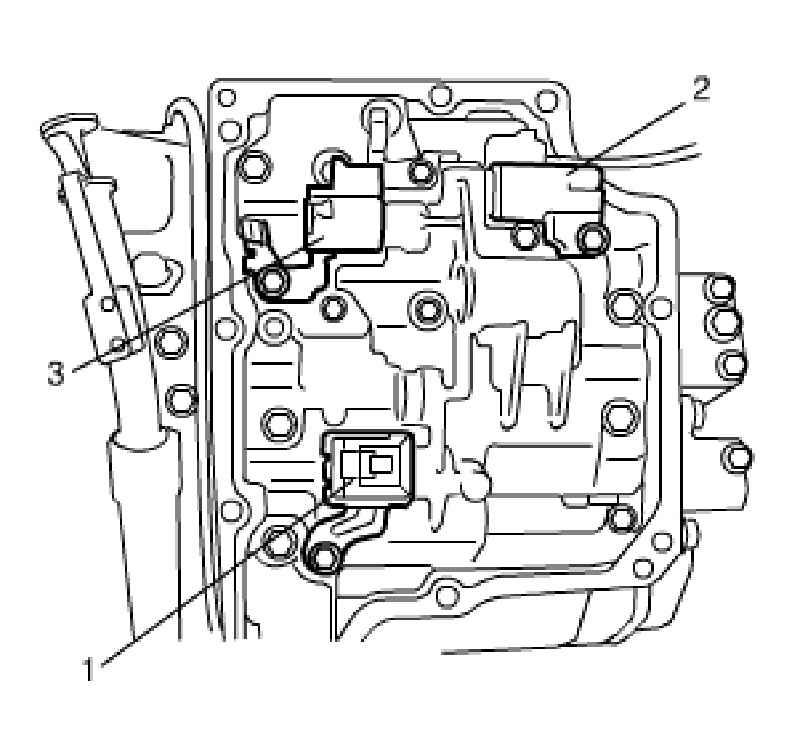

Remove TCC solenoid valve (1), shift solenoid valve-B (No. 2) (2) and shift solenoid valve-A (No. 1) (3) by removing bolts.

Fig 4: Removing TCC Solenoid Valve
Courtesy of SUZUKI OF AMERICA CORP.
