Planetary Front Gear

WARNING: This page is about a different variant/trim than selected.

Measure inside diameter of planetary front gear (1) bushing, using special tools. If inside diameter exceeds limit, replace planetary front gear.

Planetary front gear bushing inside diameter limit

30.13 mm (1.186 in.)

Special Tool

NOTE: Perform measurement at several points.

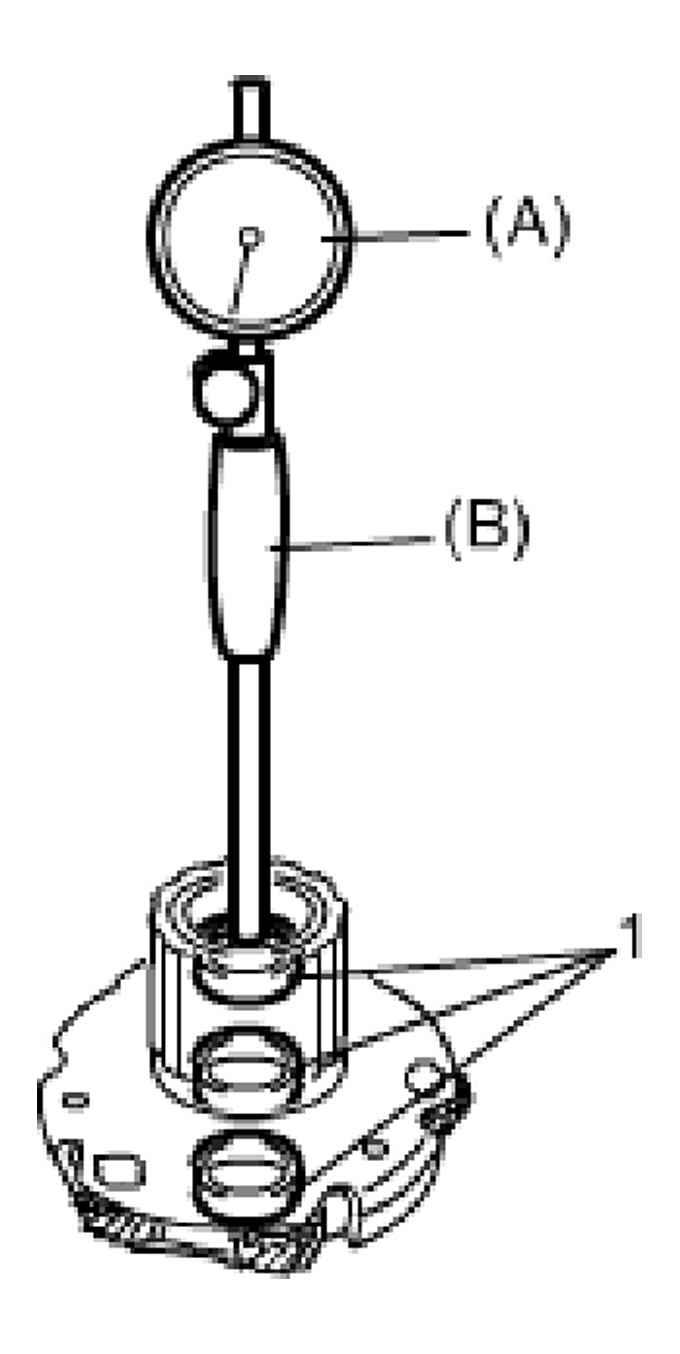

Fig 1: Measuring Planetary Front Gear Bushing Inside Diameter

Courtesy of SUZUKI OF AMERICA CORP.
