Planetary Gear Disassembly and Reassembly: Disassembly

WARNING: This page is about a different variant/trim than selected.

Rear planetary ring gear assembly

  1. Remove snap ring (1) using flat end rod or the like.
  2. Remove rear planetary ring gear flange (2) from rear planetary ring gear (3).

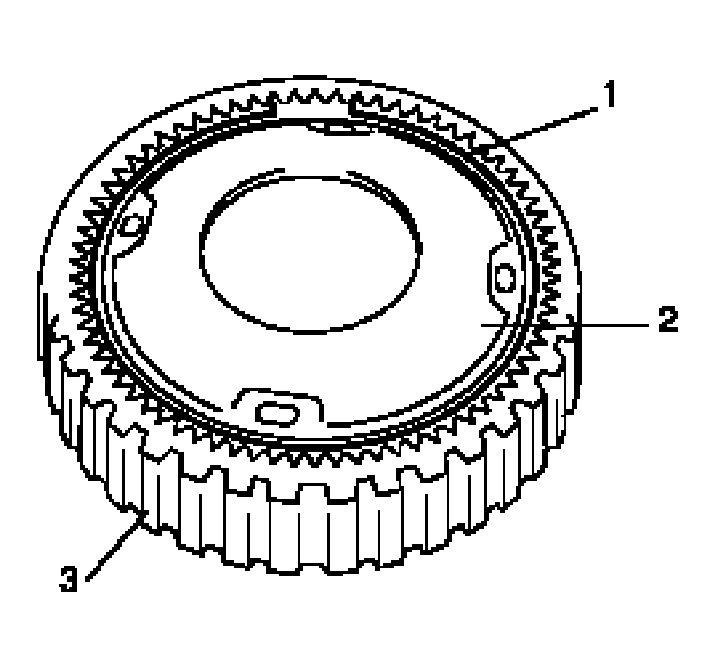

    Fig 1: Removing Rear Planetary Ring Gear Flange
    G04592040Courtesy of SUZUKI OF AMERICA CORP.
