Oil Pump 2nd Coast Brake and 2nd Brake Components

WARNING: This page is about a different variant/trim than selected.

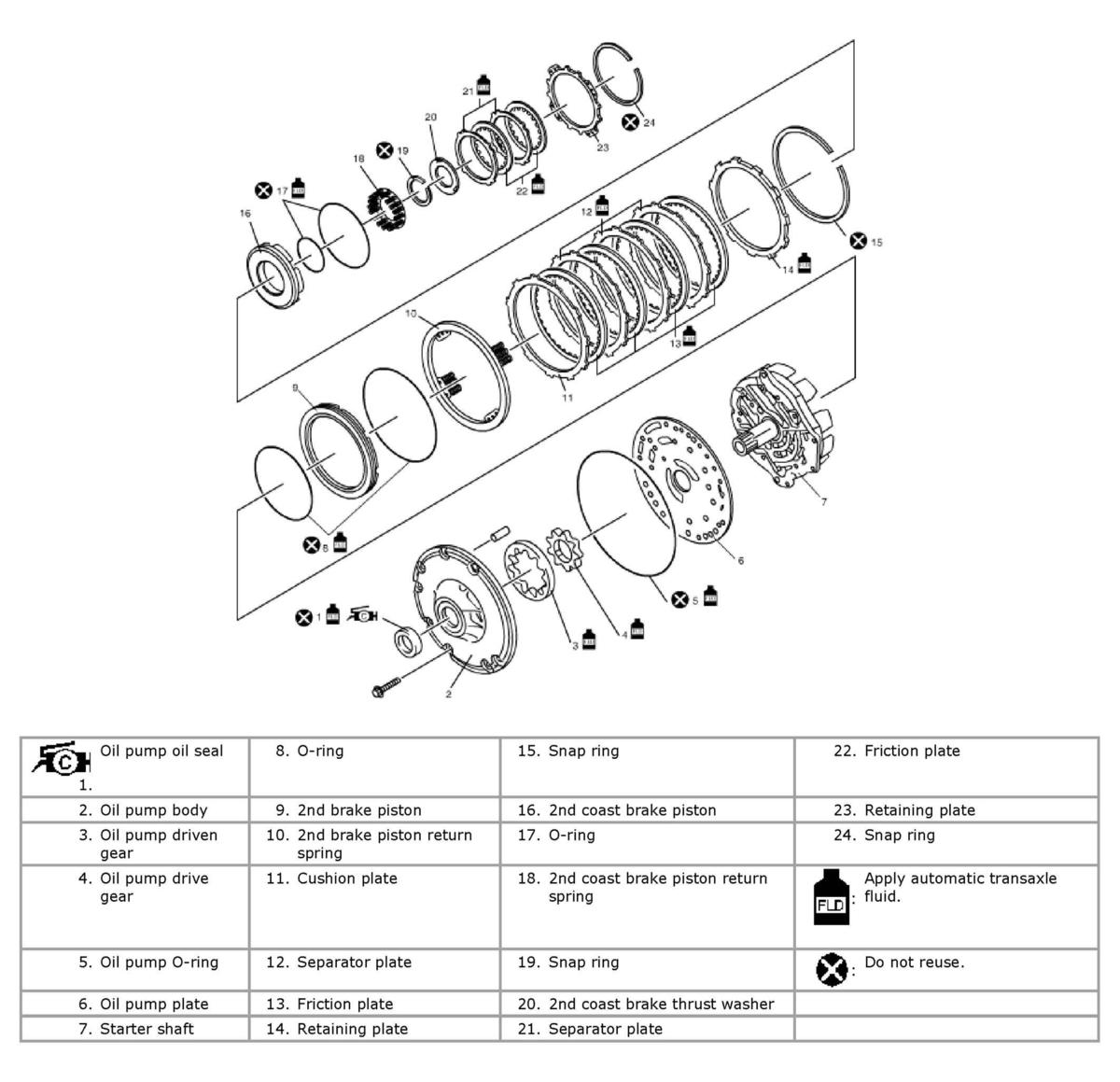

Fig 1: Identifying Oil Pump 2nd Coast Brake And 2nd Brake Components
G04591956Courtesy of SUZUKI OF AMERICA CORP.
