One-Way No. 2 Clutch

WARNING: This page is about a different variant/trim than selected.
  1. Check that one-way No. 2 clutch (1) turns freely when turned counterclockwise [A] and looks when turned clockwise [B].

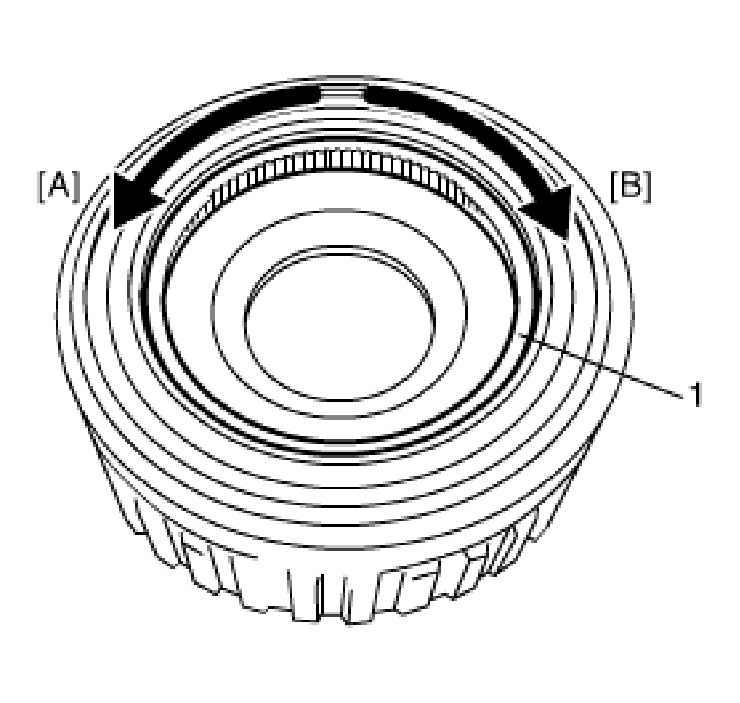

    Fig 1: Checking 1st / Reverse Brake And One-Way No. 2 Clutch Operation
    G04592012Courtesy of SUZUKI OF AMERICA CORP.
