1st / Reverse Brake and One-Way No. 2 Clutch Disassembly and Reassembly: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. Remove one-way No. 2 clutch inner race (1).

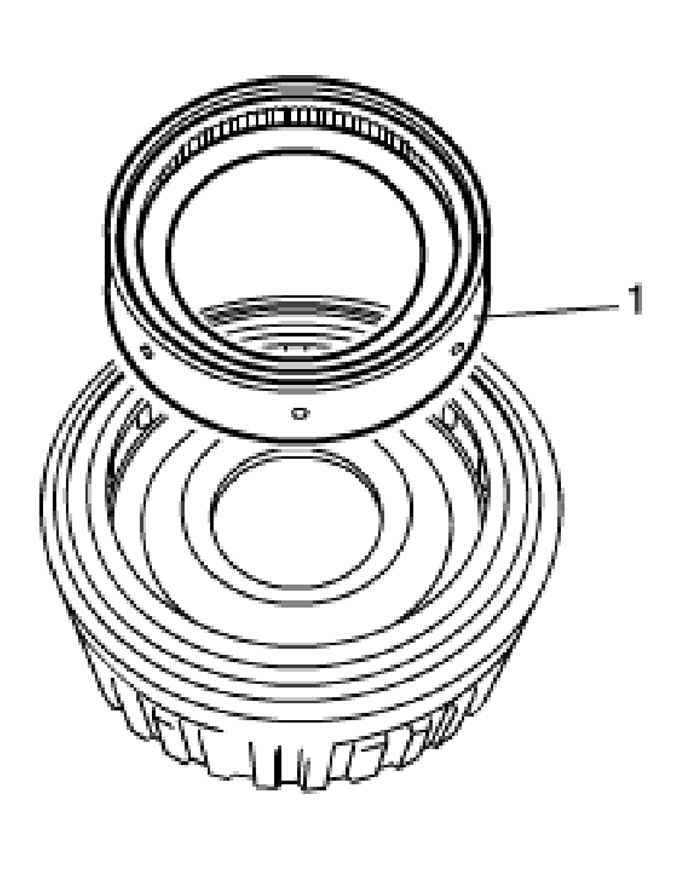

    Fig 1: Removing One-Way No. 2 Clutch Inner Race
    G04592013Courtesy of SUZUKI OF AMERICA CORP.
  2. Remove snap ring (1), using flat end rod or the like.
  3. Remove one-way No. 2 clutch (2) and front planetary ring gear thrust washer (3).

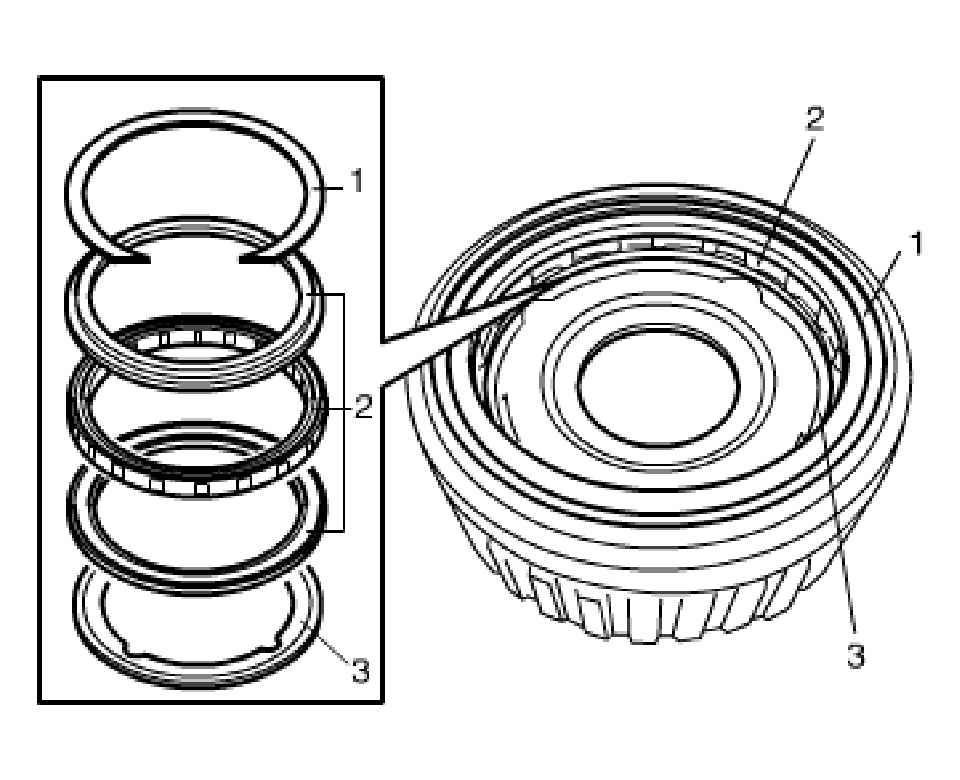

    Fig 2: Removing Snap Ring
    G04592014Courtesy of SUZUKI OF AMERICA CORP.
  4. Remove snap ring (1), using pliers or the like.
  5. Remove front planetary ring gear flange (2) from front planetary ring gear (3).

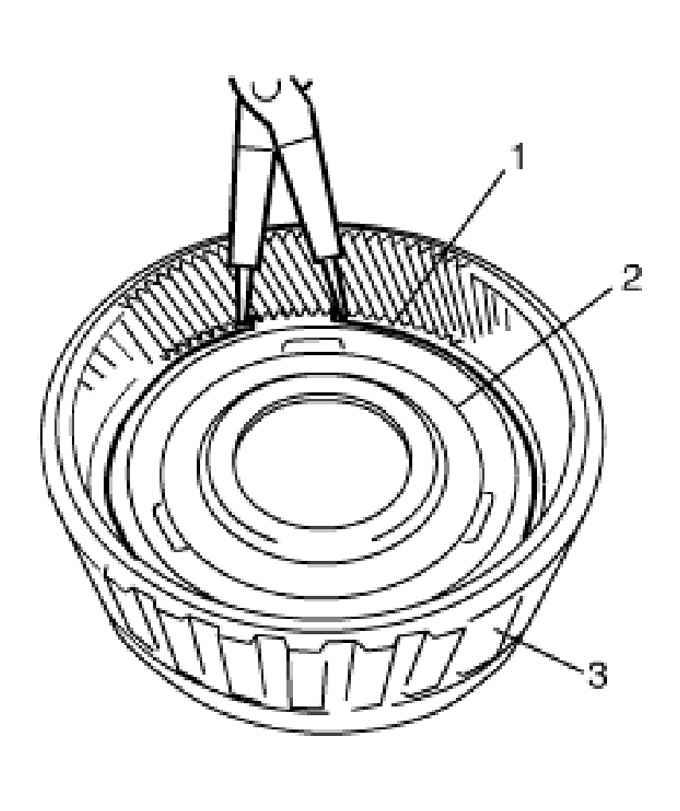

    Fig 3: Removing Front Planetary Ring Gear Flange
    G04592015Courtesy of SUZUKI OF AMERICA CORP.
  6. Remove O-rings (1) from 1st / reverse brake piston (2).

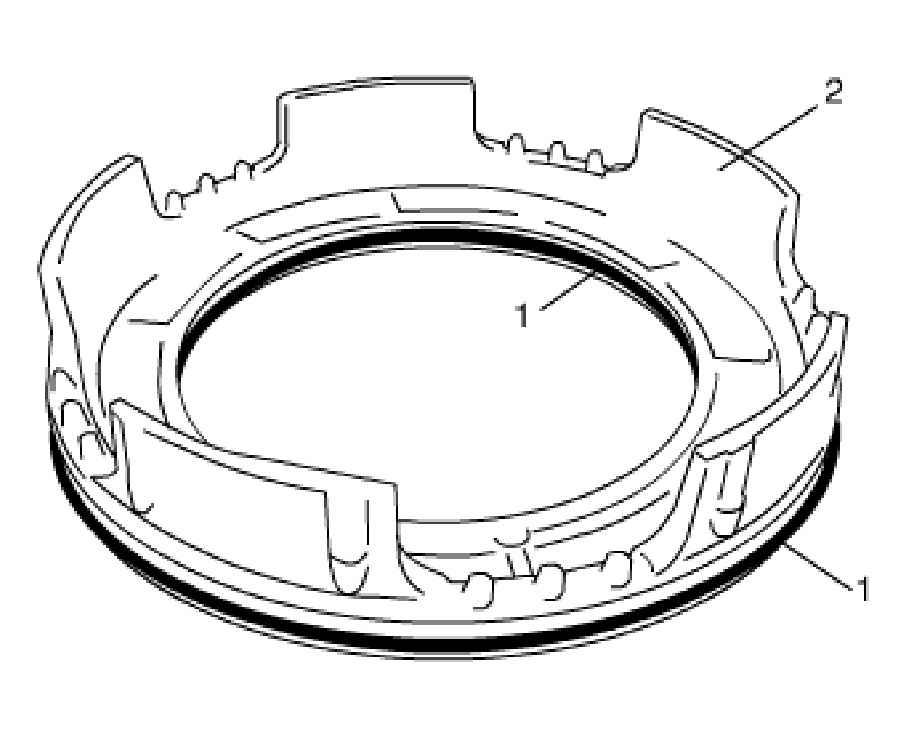

    Fig 4: Removing O-Rings (1) From 1st / Reverse Brake Piston
    G04592016Courtesy of SUZUKI OF AMERICA CORP.
