DTC P2764 (No. 26): TCC Pressure Control Solenoid Control Circuit Low: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

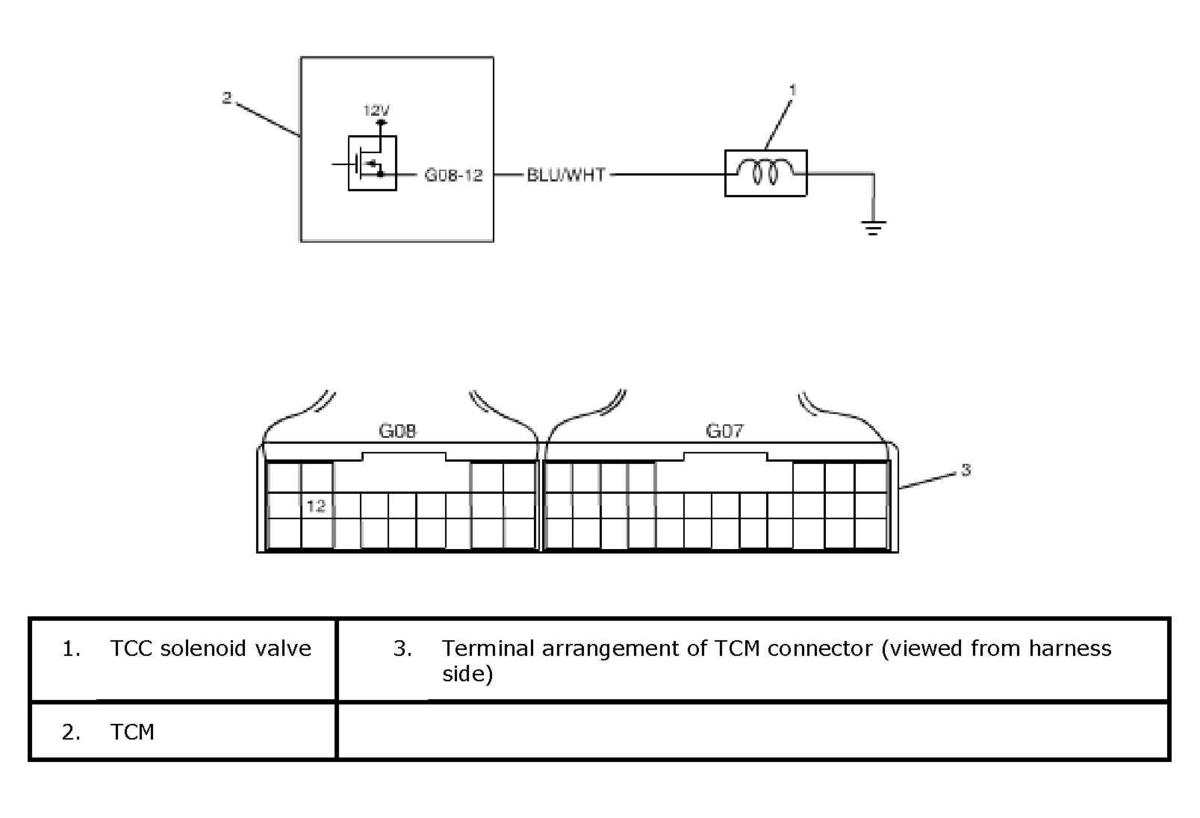

Fig 1: Wiring Diagram - TCC Pressure Control Solenoid Control Circuit Low
G04591841Courtesy of SUZUKI OF AMERICA CORP.
