DTC P2763 (No. 25): TCC Pressure Control Solenoid Control Circuit High: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

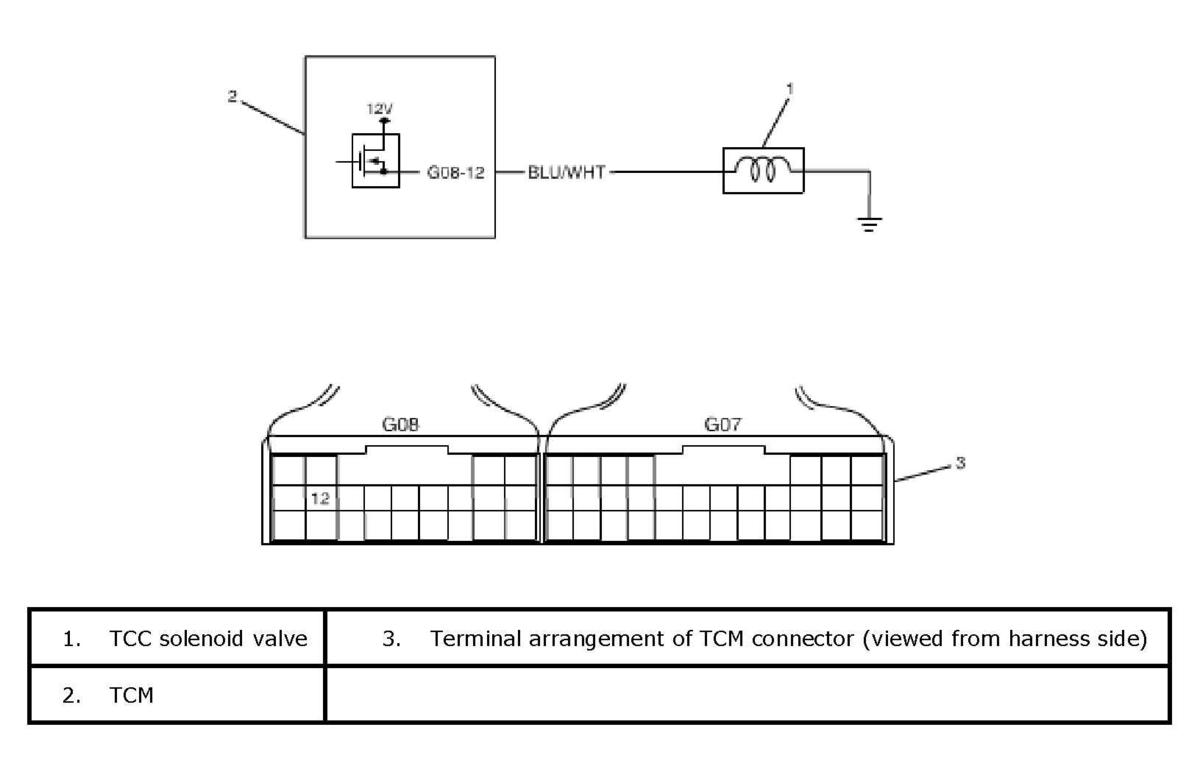

Fig 1: Wiring Diagram - TCC Pressure Control Solenoid Control Circuit
G04591839Courtesy of SUZUKI OF AMERICA CORP.
