DTC P1895 (No. 27): Torque Reduction Signal Circuit Malfunction: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

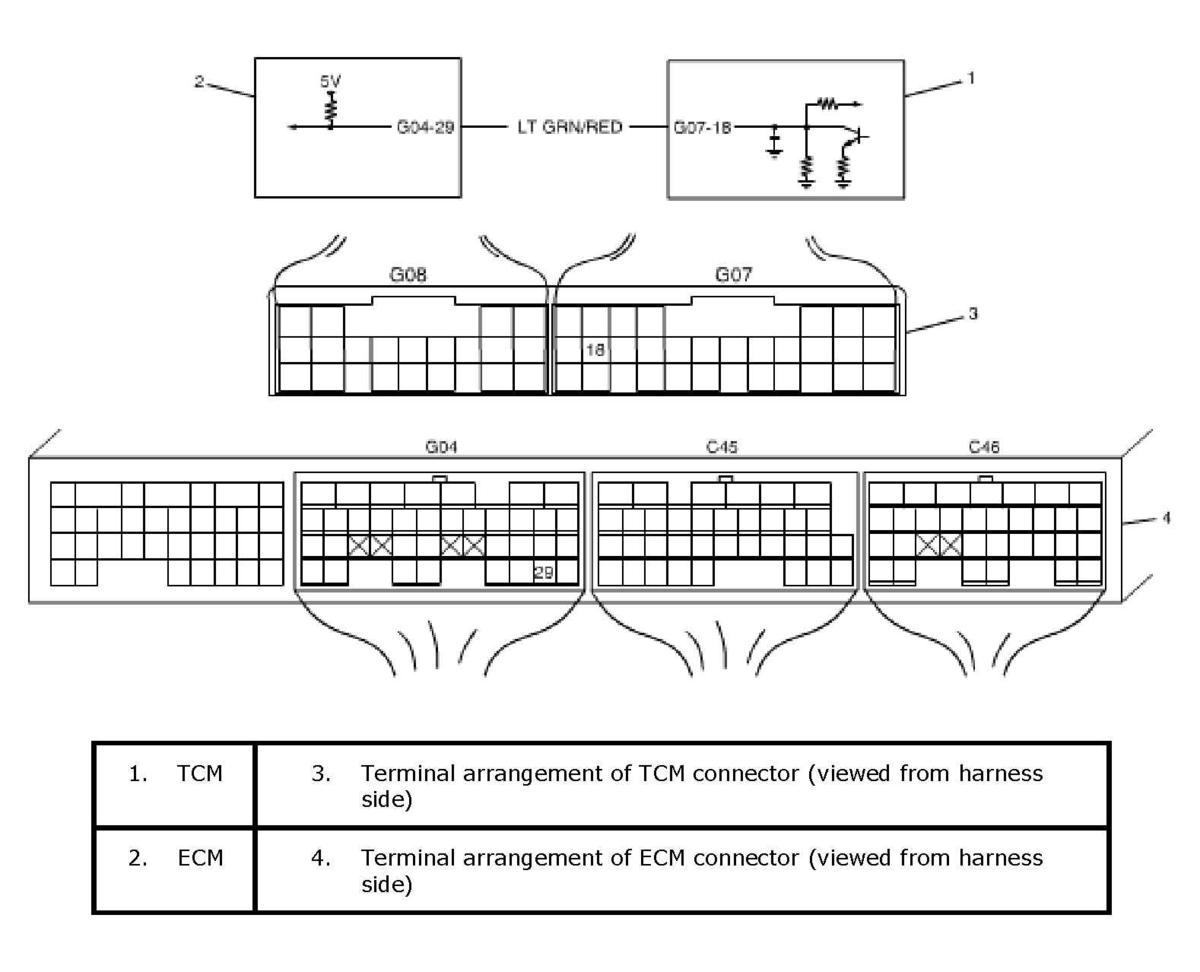

Fig 1: Wiring Diagram - Torque Reduction Signal Circuit
G04591838Courtesy of SUZUKI OF AMERICA CORP.
