DTC P1740 (No. 75): Cruise Control Signal Circuit Malfunction: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

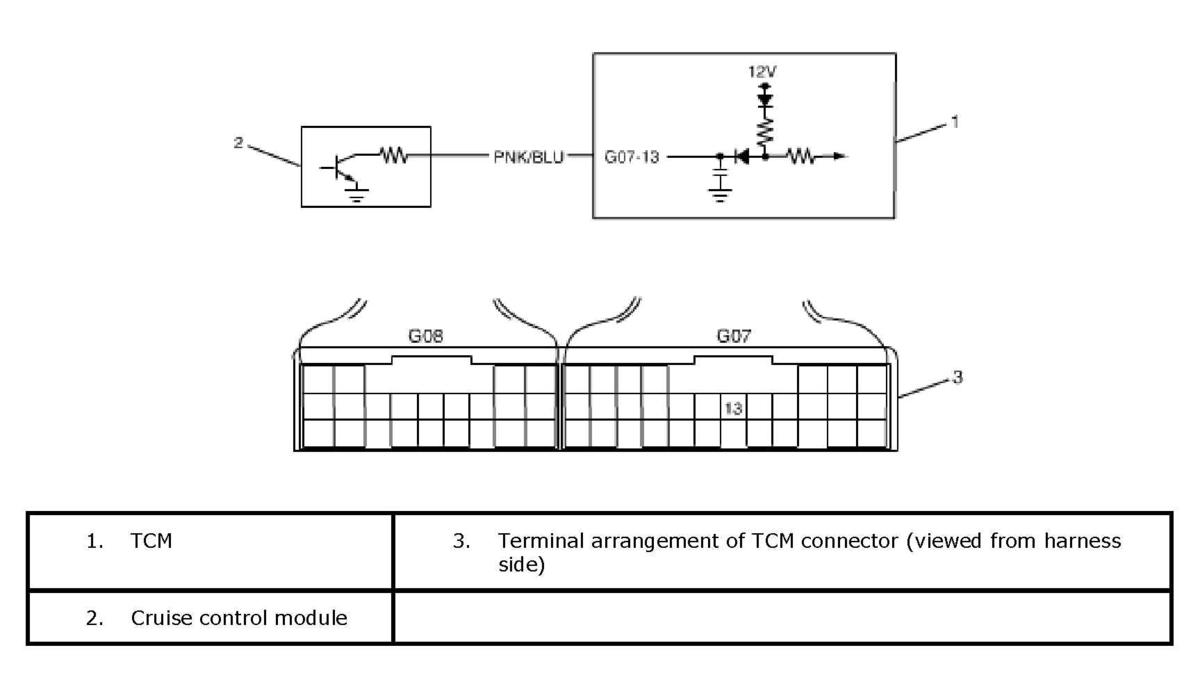

Fig 1: Wiring Diagram - Cruise Control Signal Circuit
G04591837Courtesy of SUZUKI OF AMERICA CORP.
