DTC P1730 (No. 64): Engine Torque Signal Circuit Malfunction: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

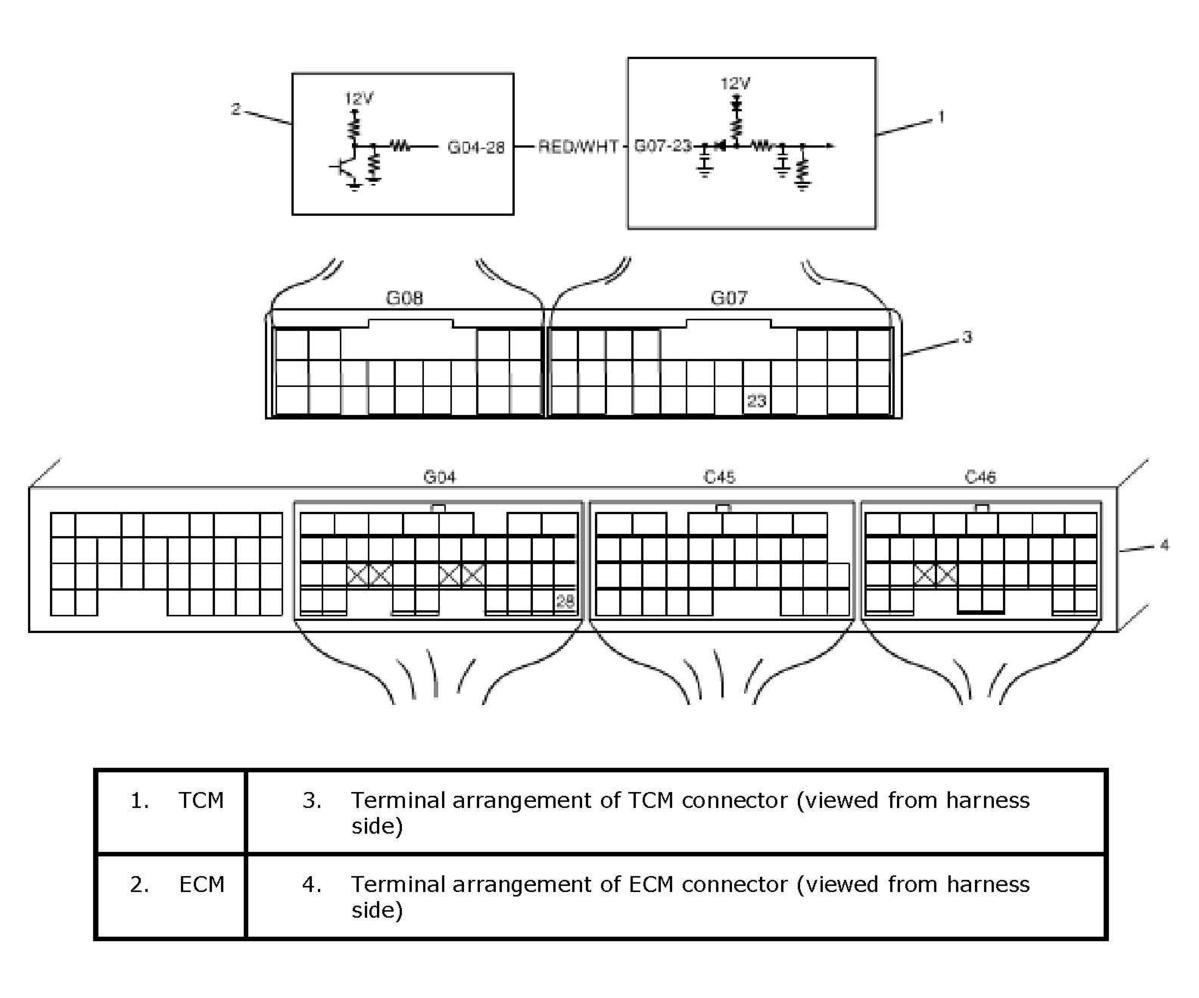

Fig 1: Wiring Diagram - Engine Torque Signal Circuit
G04591836Courtesy of SUZUKI OF AMERICA CORP.
