DTC P1709 (No. 51): Engine Coolant Temperature and Barometric Pressure Signal Circuit Malfunction: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

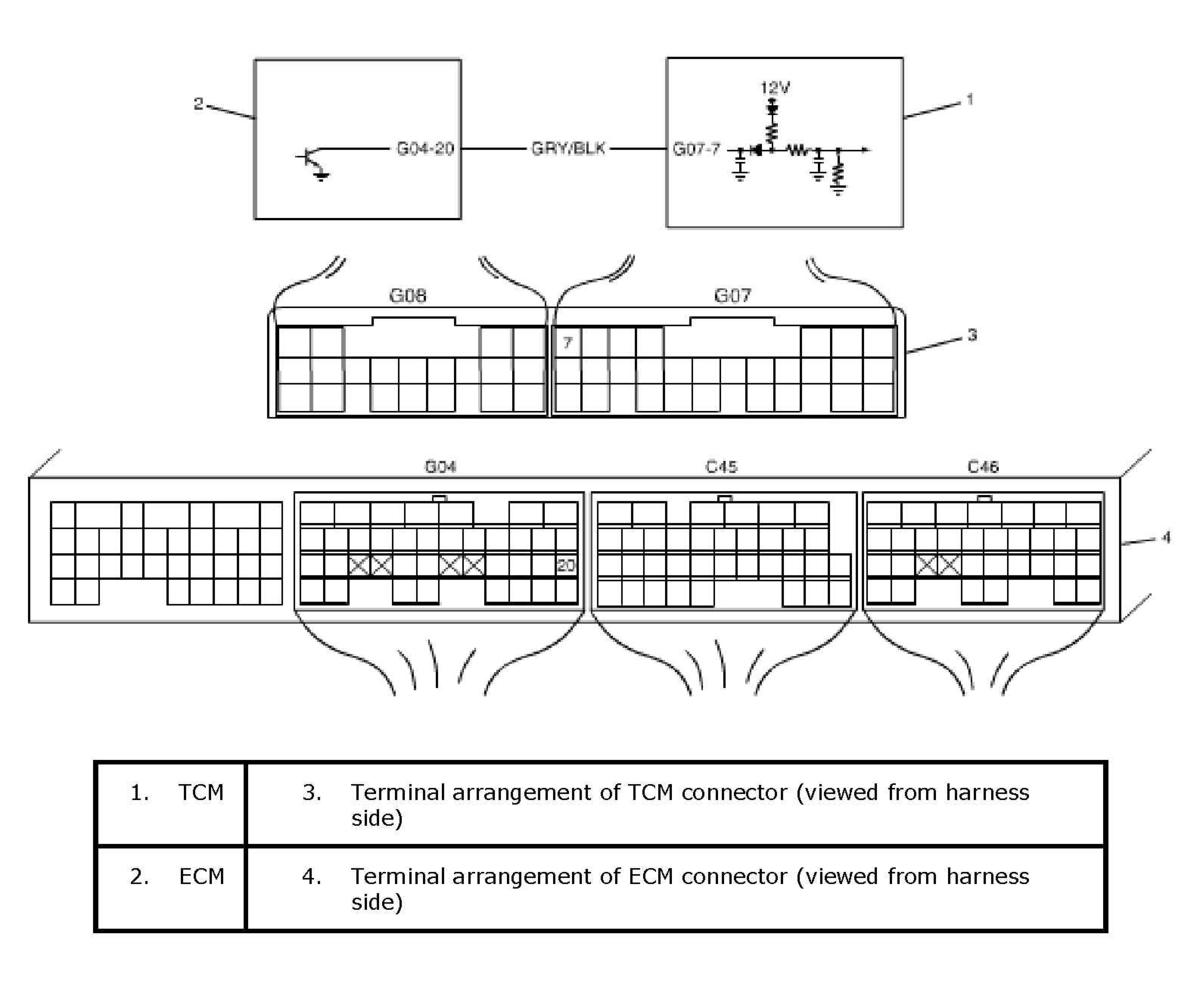

Fig 1: Wiring Diagram - Engine Coolant Temperature And Barometric Pressure Signal Circuit
G04591835Courtesy of SUZUKI OF AMERICA CORP.
